Asphalt Mix Testing Instruments

EIE Make ‑ Computerized POKER CHIP testing machine having capacity of 0‑500 Kgf (5 KN) (5000 N). Supplied complete with all accessories as mentioned in the long description

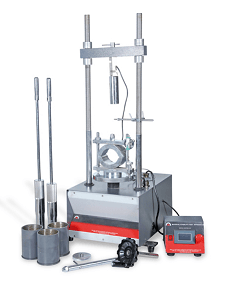

Marshal Stability Testing Machine (ASTM D6927 & D1559) measures stability and flow of bituminous mixtures by determining maximum load and deformation, ensuring accurate, efficient quality control for road construction materials.

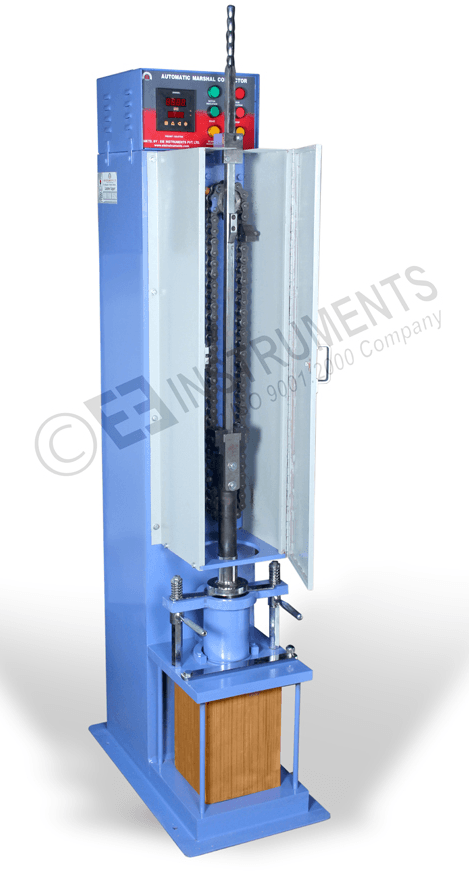

An automatic compactor for Marshall test is a machine that prepares asphalt samples by applying controlled blows automatically. It ensures uniform compaction and accurate results in Marshall stability testing.

Primarily used for Marshal test. It will be motorized with a uniform vertical movement of 50.8 mm/minute (2"/minute) suitable for operation 230 volts & 50 cycles single phase A.C. supply. It will be fixed with a reversible motor, reversing switch & limit switches to restrict the traveled capacity to 100 KN. As per ASTM D1559. Digital version with PC software also available

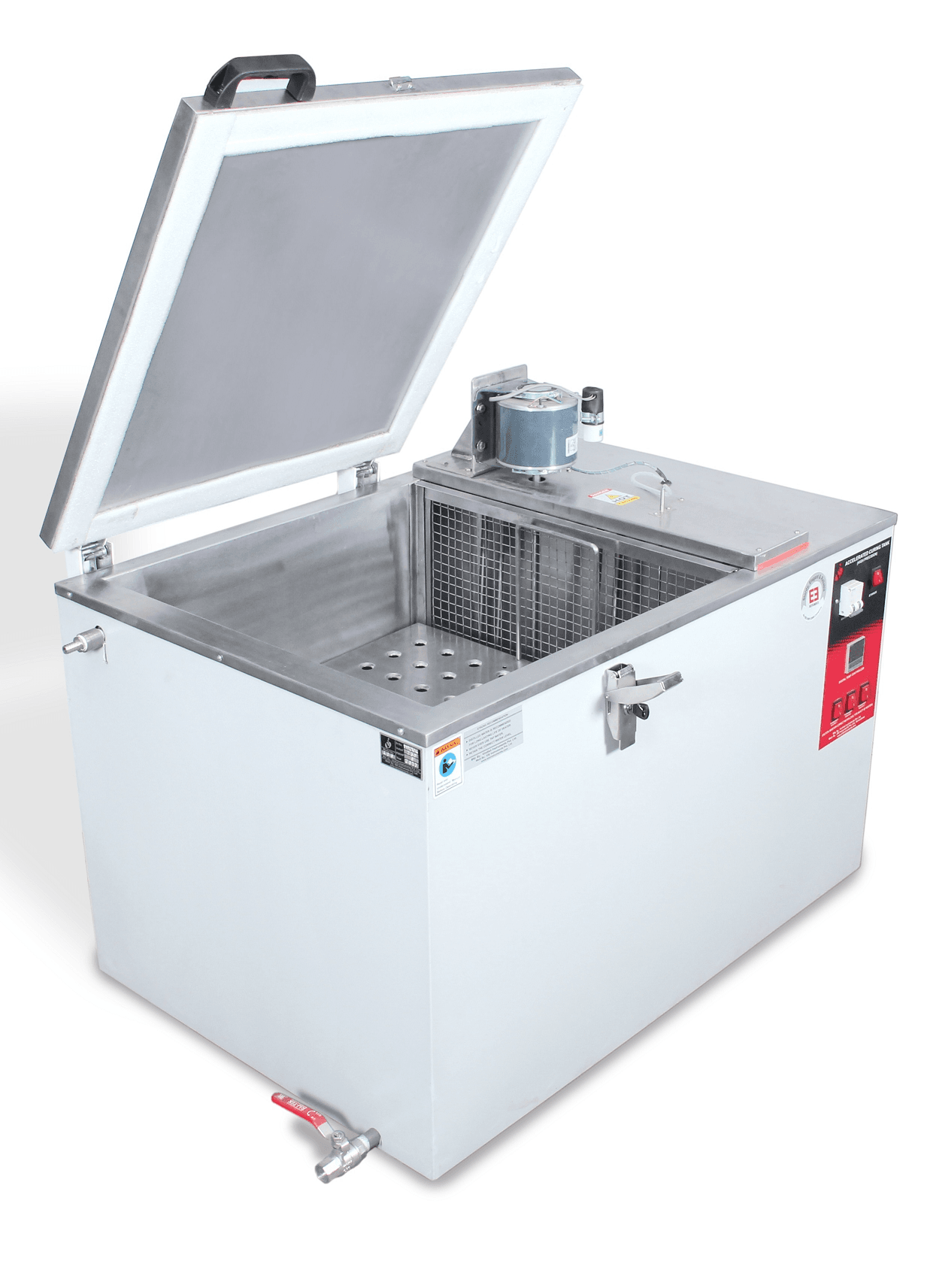

The water bath is a critical component in Marshall testing of asphalt mixtures, ensuring samples are conditioned at the prescribed temperature before testing for stability and flow. Each standard, including ASTM D1559, ASTM D5581, AASHTO T245, EN 12697-12, and EN 12697-34, emphasizes precise temperature control to replicate field conditions and ensure consistent, reliable results.

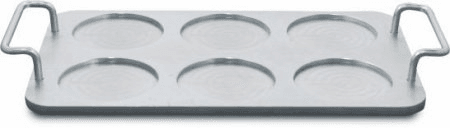

To store 6 pieces of Marshall Specimen. Specimen dia : 100 mm (4").

Complete with Vacuum Pump, GMM Flask of 2 ltr or 5 Ltr. Capacity and 1.5 meter high pressure rubber tubing.

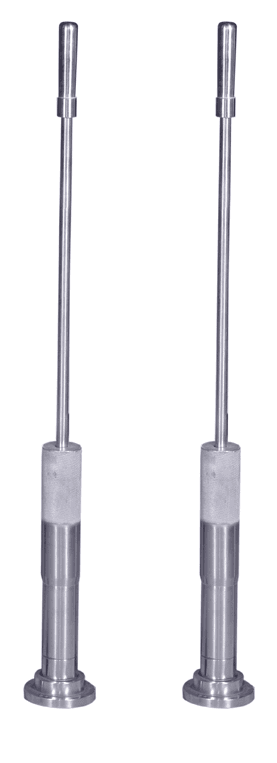

The Marshall Rammer compacts asphalt into molds for laboratory testing.

The 100 kN Digital Loading Unit is a high-capacity machine used to test the stability and flow of 6-inch (Modified) Marshall asphalt specimens.
