Compliance standards:
- IS:11761 -1997 / IS:11652-2000 / IS 12154 / IS:16709-2017
Applications:
- For Cement bag Tensile Strength Test
Overview:

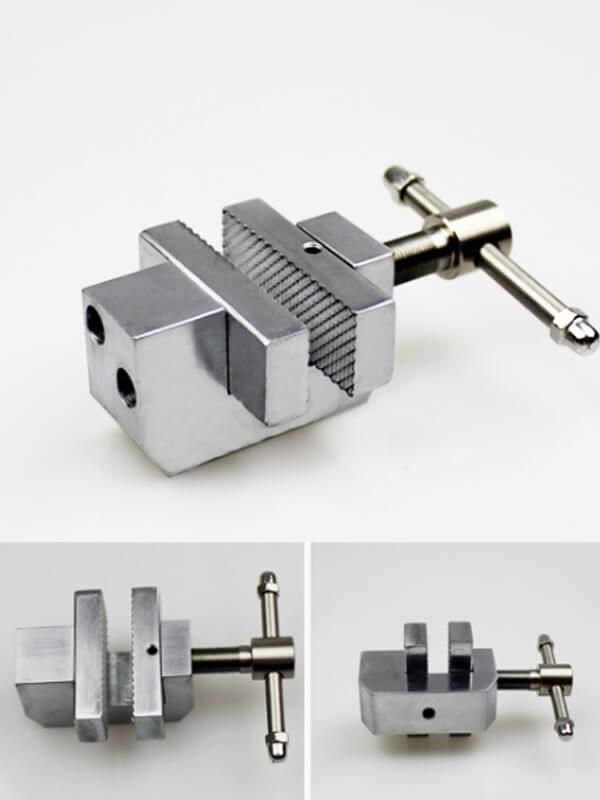

- Computerized Tensile Strength testing machine having capacity of 0‑250 Kgf (2.5 KN) (2500 N). Supplied complete with dedicated software program. Equipped with ball screw, Induction Motor & drive (for speed variation 50mm/min to 300mm/min) along with encoder to measure the elongation using pair of grips. Grip is available at extra cost and quoted separately.
Salient Features:
- Floor standing model
- Aesthetic outer appearance
- Unique and compact design features
- Fitted with Microprocessor based PROGRAMMABLE Logical controller
- Computer interface through USB Drive
- Equipped with Ball screw for friction less traverse
- Rotary encoder for high accuracy in elongation
- Reputed make induction motor with dedicated gear box and drive for speed variation and to maintain speed at high torque (at maximum load)
- Easy to use display unit (controller part) and software
- In‑built Over Load Safety
- In‑built Over Travel Safety
- Auto Reverse facility
- Auto Break
- You can get graph for load v/s elongation (stress v/s strain) and also get a excel sheet with a single click
Software facility: (At extra cost)
- Specially designed Windows based Graphical Dedicated Software
- RS 232 interface with WINDOW based software to conduct the test directly from software itself
- Can store generated data with corresponding graph
- User can export the generated data in various file formats such as i.e. Excel, PDF etc
- Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.
- User can change the design of generated graphs i.e. Line, Doted line, etc facility in graph
- Graph Grids color combination facility
- Graph zooming facility
- Individual graph comparison facility
- Graph overlapping facility for analysis of material property
- Auto scaling facility
- Company logo insertion facility
- Software can run various tests and can recall data for any test conducted the in history. (If Saved)
- Software is Menu Driven for easy navigation.
- Test reports and graphs directly printed on terminal printer through direct print commands
- Data and Result Units Selectable
- User can operate the machine directly from the software itself
