Melt Flow Index Tester As Per Astm D1238

Model Number : GT-109

Melt Flow Index Tester designed to determine the melt flow rate of thermoplastic materials, ensuring accurate evaluation of polymer processing characteristics and quality control.

Product PDF Instant Quote

DetailsTechnical SpecificationsAccessoriesSpares

Available Variants:

Manual Melt Flow Index Tester
Motorized Melt Flow Index Tester
Automatic Melt Flow Index Tester
Fully Automatic Melt Flow Index Tester

Details:

1. Manual Melt Flow Index Tester

Manual sample cutting
Manual sample weighing
Manual calculation of results
Method A

2. Motorized Melt Flow Index Tester

Automatic motorized sample cutting
Manual sample weighing
Manual calculation of results
Stepper motor with programmable controller for auto cutting function
Method A & C

3. Automatic Melt Flow Index Tester

Motorized auto sample cutting
Auto sample weighing
In-built digital weighing balance with accuracy of 0.01 grams
Auto MFR calculation
Window-based software
RS-485 port to interface with computer
Method A & C

4. Fully Automatic Melt Flow Index Tester

Auto cutting
Auto weighing
Auto loading of weights from 2.16 to 21.6 kg
Auto MFR & MVR calculation
Highly advanced and intelligent HMI & PLC system
Direct report printing through thermal printer
Dedicated PC software available at extra cost
Method A, B & C
Piston travel length measurement by LVDT sensor, range up to 110 mm and accuracy of 0.01 mm
Automatic weight loading system

Compliance With International Standards:

ASTM D1238
IS 2530 – Method A

Applications:

Melt Flow Indexer is used to measure the flow rate of different polymers. The reported Melt Index values help to distinguish between different grades of polymers. This is due to the fact that plastic materials are seldom manufactured without incorporating additives, which affect the processing characteristics of material like stability and flow ability.
The Melt Flow Index Test measures the rate of extrusion of a thermoplastic material through an orifice of specific length and diameter under prescribed conditions of temperature and pressure.

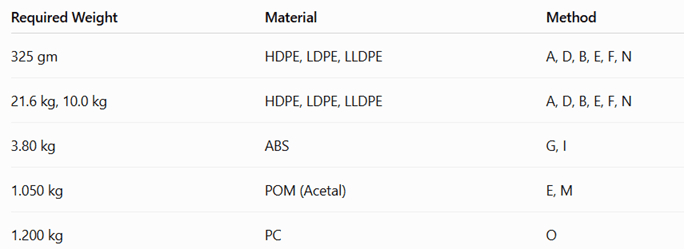

Additional Weight Requirements As Per ASTM D1238:

Note:

Extra weights are available as per details given in ASTM D1238. Other weights are available at extra cost.

Temperature ControllerMicroprocessor based Digital Temperature Controller; Microcontroller based PID Temperature Controller
Temperature Range0 to 400 °C
Temperature ResolutionUp to 0.1 °C
Temperature Accuracy±0.1% F.S.D.; ±0.1°C
TimerMicroprocessor based Digital Timer
Timer Range0–999.9 Seconds with preset facility and buzzer output
Dead Weights1.2 kg, 2.16 kg, 3.8 kg, 5 kg and 21.6 kg chrome/hard chrome plated weights; other weights at extra cost
Sample CuttingManual Type; Automatic Motorized Sample Cutting
Weight LiftingManual
Sample WeighingManually with external electronic balance; Automatic with in-built electronic balance
Weighing Balance Accuracy0.01 grams
MFI RangeUp to 20 g/10 min
Exterior BodyFabricated from Mild Steel Material
Exterior Body PaintPowder coated in attractive shades
ModelTable Top Model; Bench Top Model
Power Supply230 Volt, 50 Hz, Single Phase, AC Supply; 220 V AC / 50 Hz, Single Phase (or as per requirement)
Current4 Amps
Dimensions17" × 17" × 25" (W × D × H)
Weight45 kg; 65 kg
MotorStepper motor with programmable controller for auto cutting function
Accessories SuppliedOrifice, Piston, Material Charger, Barrel Cleaner, Orifice Cleaner, Sample Cutter
Additional AccessoriesLinear, Mirror, Tweezers
SoftwareWindow-based software; Dedicated PC software available at extra cost
CommunicationRS-485 Port to interface with computer
Display & Data AccessScrolling display for individual results and average MFI value on completion of test
Data TransferData can be transferred to PC in Excel format on completion of test
Report PrintingDirect print of report on thermal printer; report printing through dedicated PC software
HMI & PLCHighly advanced and intelligent HMI & PLC system for MFI test
Programmable ParametersProduct specification, density of product, operator details, date & time of test etc.
LVDT SensorPiston travel length measurement with range up to 110 mm and accuracy of 0.01 mm
Weight LoadingAuto loading of weights from 2.16 to 21.6 kg
PC RequirementPersonal Computer with USB Interface & Serial Interface COM Port (COM1 or COM2); PC with CD ROM & Serial Interface COM Port (COM1 or COM2)
Test MethodsMethod A, B & C; source also specifies Method A, D, B, E, F, N and Method G, I / E, M / O for specified additional weights and materials
