NDT Testing Instruments

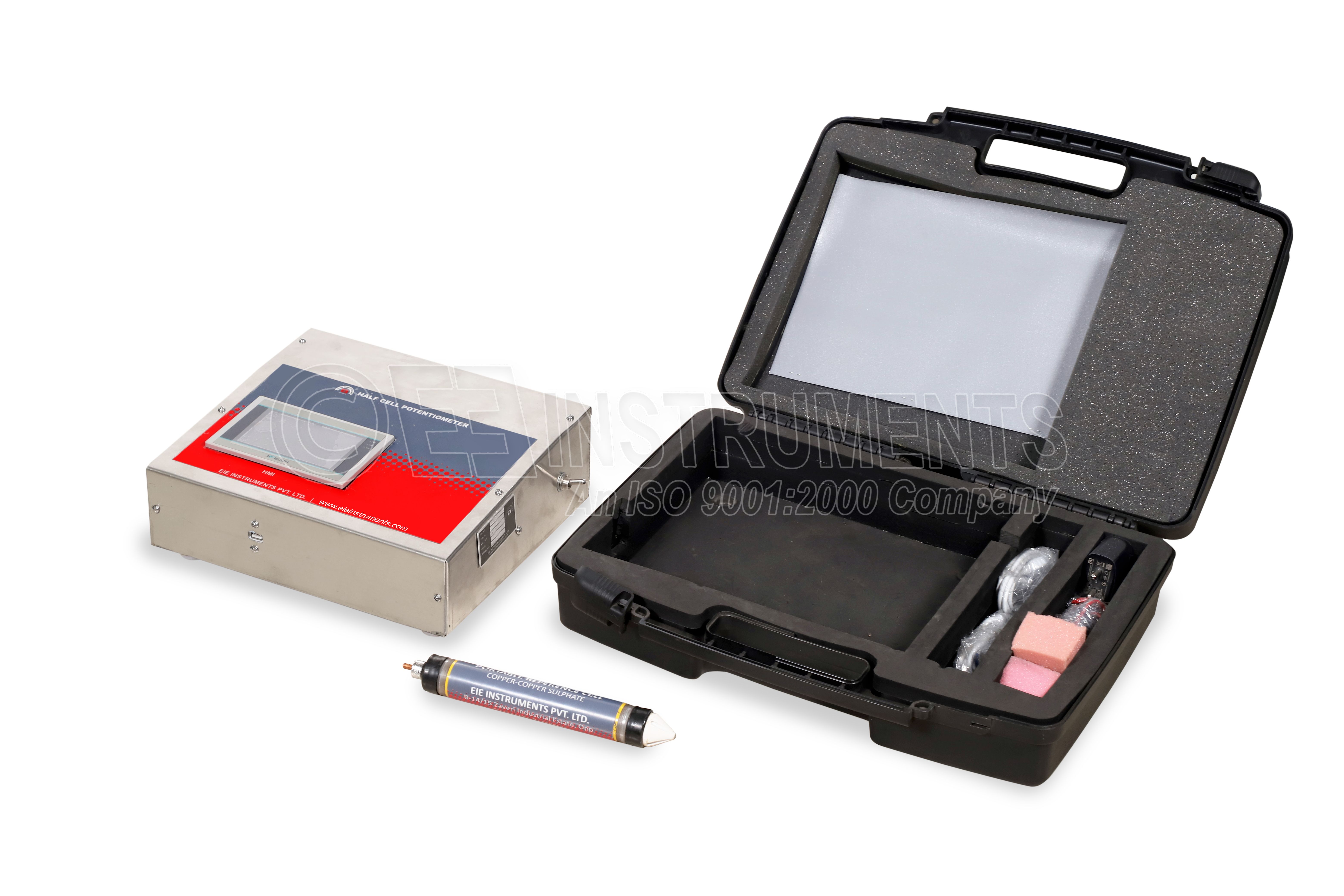

The half-cell potential test is a non-destructive method used to assess the probability of corrosion in uncoated reinforcing steel within concrete. The method involves measuring the potential difference between the steel reinforcement and a reference electrode placed on the concrete surface. The test results are qualitative, providing an indication of corrosion probability.

The Calibration Anvil for Concrete Test Hammer is used to verify the accuracy of rebound hammers, as per IS: 516 (Part 5/Section 4): 2020 and ASTM C 805. Made of hardened steel, it provides a standard reference to ensure accurate and consistent rebound measurements for concrete strength testing. Steel anvil for verification of the hammer, defined with a hardness between 64 - 68 HRC and a mass of (20 ± 1) kg and a diameter of approximately 150 mm. Weight 20 kgs approx.

Large Screen Intelligent Processing, Dual-purpose Wet and Dry Hole Testing.

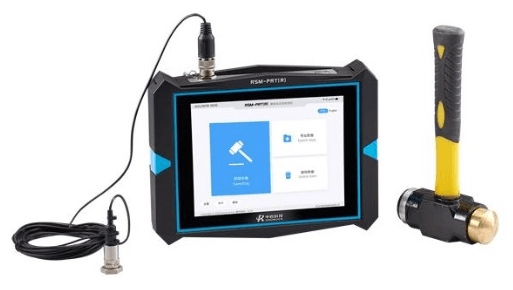

Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations ASTM D5882-16

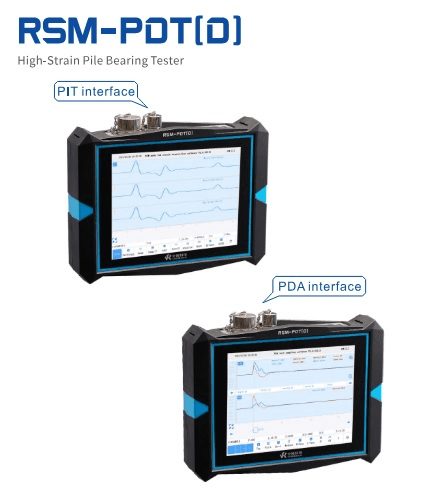

Standard Test Method for High Strain Dynamic Testing of Deep Foundations ASTM D4945-17. Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations ASTM D5882-16.

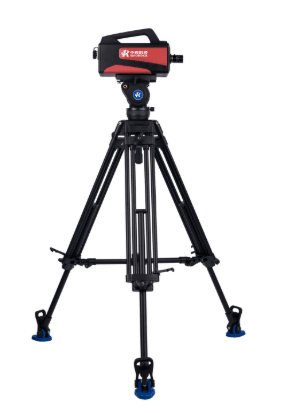

Product profile: Through the most advanced image quality assessment algorithm, image quality enhancement algorithm and fast camera self-calibration technology, the RSM FBN(A)non-contact bridge static and dynamic deflection tester can quickly measure the high-precision dynamic and static deflection, displacement and vibration at multiple points of such facilities as bridges, towers and hoisting machinery in real time through a main machine without any marks on site. The software system matched with the instrument has the functions of guided operation, automatic data recording, automatic calibration, intelligent point selection, real-time output, ultra-limit alarm and safety assessment. The instrument is designed integrally and equipped with military grade sensors and connectors, so it can be used intuitively, simply and conveniently on site.

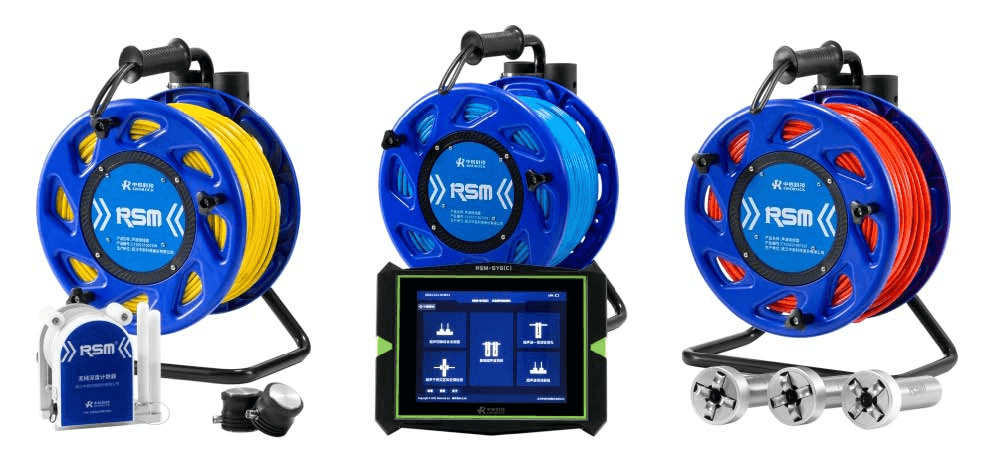

RSM-SY6 (C) Ultrasonic Pile Integrity Tester is the most cost-effective CSL device, which can complete the acoustic pile integrity detection by transmission method, and is compatible with concrete strength detection by ultrasonic-rebound combined method, concrete crack depth detection, longitudinal wave velocity test of rock mass in geological investigation, detection of loosen zone of tunnel rock mass, etc. It has the characteristics of small size, light weight, simple operation and easy learning.
