Orbital Shaking Incubator

Available Variants:

1. Heating & Cooling - 250 Ml × 9 Flasks
2. Heating & Cooling - 250 Ml × 16 Flasks
3. Heating & Cooling - 250 Ml × 25 Flasks
4. Heating & Cooling - 250 Ml × 36 Flasks
5. Heating & Cooling - 500 Ml × 9 Flasks
6. Heating & Cooling - 500 Ml × 16 Flasks
7. Heating & Cooling - 500 Ml × 25 Flasks
8. Heating & Cooling - 1000 Ml × 4 Flasks
9. Heating & Cooling - 1000 Ml × 9 Flasks
10. Heating Only - 250 Ml × 9 Flasks
11. Heating Only - 250 Ml × 16 Flasks
12. Heating Only - 250 Ml × 25 Flasks
13. Heating Only - 250 Ml × 36 Flasks
14. Heating Only - 500 Ml × 9 Flasks
15. Heating Only - 500 Ml × 16 Flasks
16. Heating Only - 500 Ml × 25 Flasks
17. Heating Only - 1000 Ml × 4 Flasks
18. Heating Only - 1000 Ml × 9 Flasks
19. GMP Heating & Cooling - 5000 Ml × 6 Flasks - PLC, HMI & 21-CFR Software

Description:

• Double walled Orbital Shaking Incubator with inner chamber made of S.S. 304 and powder coated outer body. The unit is equipped with PMDC motor with drive, digital RPM indicator, digital timer, digital temperature controller, interior illumination and transparent viewing window. Shaking speed is available in the range of 50–200 RPM or 50–250 RPM depending on the supplied configuration. The unit operates on 230 V AC Single Phase supply.

Details:

• Exterior body is fabricated from Mild Steel Material and powder coated in attractive shades.
• Interior chamber is fabricated from mirror polished Stainless Steel S.S. 304 material.
• Outer double walled metal door is provided with sponge type silicon gasket for air-tight sealing.
• Electrical wiring is provided as per CE Compliance with individual numbering of internal circuitry wires for ease of maintenance and repairing.
• Chamber illumination is accomplished by fluorescent light with door switch.
• Cord wire is duly tested and inspected with stress factor as per CE standard.
• Electric motor is protected with a safety cover to avoid accidents.
• Standard motor of reputed companies such as CG, GODREJ or GE Make.
• User friendly chamber door and locking mechanism.
• Aesthetic outer appearance and high quality construction.
• Unit mounted on castor wheels for easy movement.
• Interchangeable S.S. tray with spring loaded S.S. Lotus clamps for holding Erlenmeyer flasks. Supplied without flasks.
• Supplied complete with Digital Timer.
• Temperature is maintained by a quiet running blower for better air circulation throughout the chamber. Forced air is circulated vertically down and re-circulated throughout the chamber for uniform temperature distribution.
• Long lasting U-Shaped tubular heaters are used as heating element.
• Heating and cooling configurations are provided with hermetically sealed CFC free compressor coupled with evaporation coil and condenser.

Pre-Installation Mandatory Requirement:

• An operator shall maintain room temperature around the machine preferably at 25 °C with air conditioning system or arrange for a well ventilated room with exhaust fan. Surrounding temperature should not exceed 30 °C.
• Stabilized input voltage of 230 Volt, 50 Hz, 20 Amps AC supply must be available for errorless performance of the instrument. Use of Servo Controlled Stabilizer is recommended.

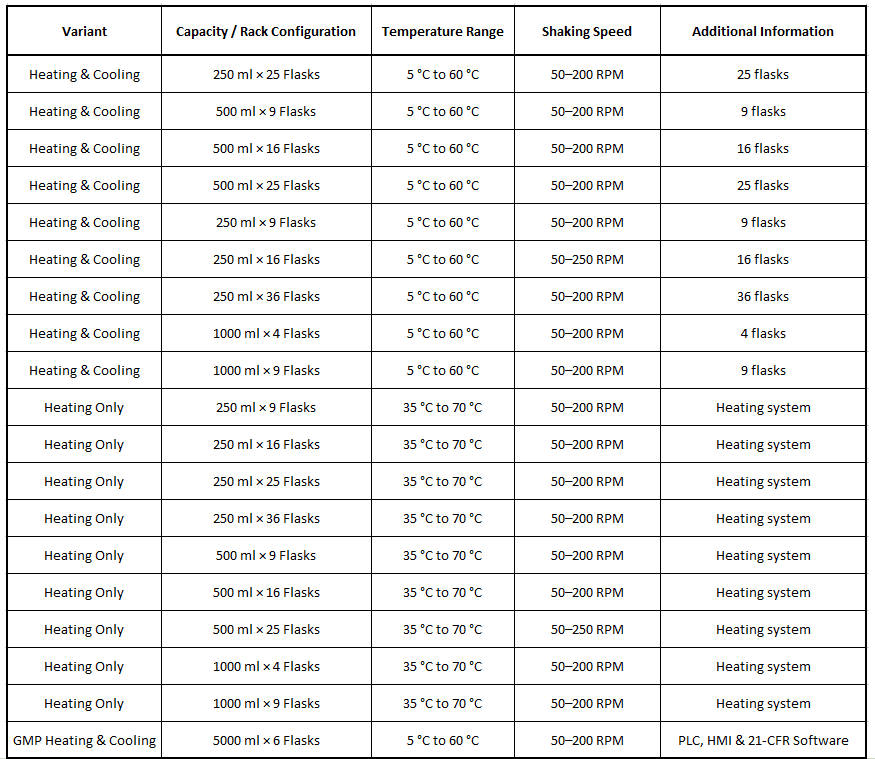

Variants Specifications:
