Available Variants:
- Mantle Type - 250 Ml X 6 Flasks
- Mantle Type - 250 Ml X 3 Flasks
- Mantle Type - 500 Ml X 3 Flasks
- Hot Plate Type - With 6 Hot Plates
- Mantle Type - 500 Ml X 6 Flasks
- Mantle Type - 1000 Ml X 3 Flasks
- Mantle Type - 1000 Ml X 6 Flasks
- Hot Plate Type - With 3 Hot Plates
Common Details:
- The apparatus is suitable to heat Soxhlet flasks. The heating element is attached to fiber glass yarn-knitted fabric to provide flexible support to bottom of the flask. Glass wool insulation is used below the elements in the housing which is phosphated and powder coated attractively. In the event of spillage the solvent will either evaporate or escape through the drainage hole below each element. The housing has two retort rods and a cross bar on which the extraction apparatus has a built-in regulator which controls the heaters. The apparatus requires a 230 Volts AC single phase supply.
Common Construction / Features:
- Glass wool insulation below the heating elements to prevent thermal loss.
- Heating element attached to fiber glass yarn knitted fabric to provide flexible support to the Flask bottom.
- Housing is phosphated and Powder coated in attractive shades.
- Housing comprises two retort rods and a cross bar, on which the extraction apparatus rests.
- Built in regulators for individual heaters, which controls the heaters.
- Individual on/off switches and Pilot lamps to indicate working of the elements.
- In the event of spillage, the solvent will either evaporate or escape through the drainage hole.
- Operation on 230 Volts, AC, single phase, supply.
Variant Details:
1. Mantle Type - 250 Ml X 6 Flasks:
- This apparatus is suitable to heat Soxhlet flasks.
- The heating elements have individual pilot lamp to indicate working of the elements.

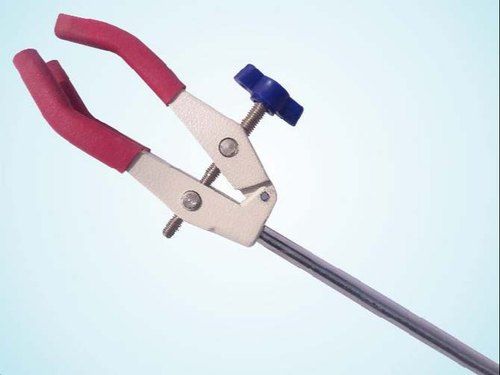

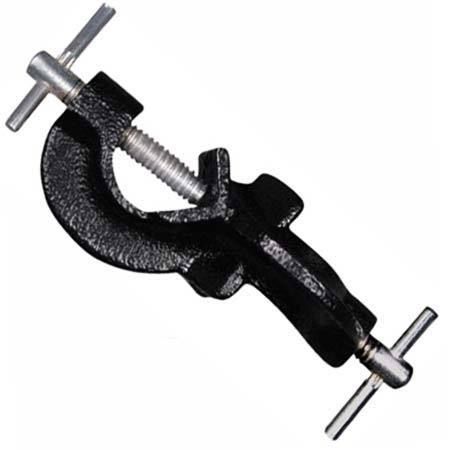

- Supplied Without glass parts, Bosshead, rubber coil and finger clamps. These are essential accessories to operate the Instrument and should be purchased as per the flask holding capacity of the apparatus.
Optional Accessories:

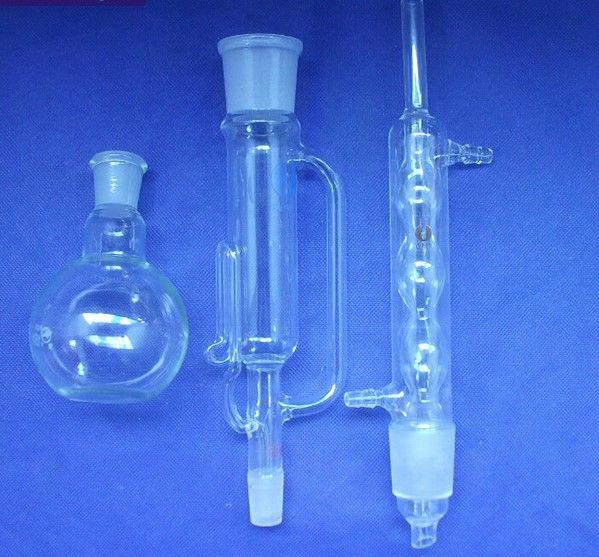

- Complete glass assembly consisting of Flask, Extractor and Allihn Condenser unit.
2. Mantle Type - 250 Ml X 3 Flasks:
- This apparatus is suitable to heat soxhlet flasks.
- Supplied Without glass parts, Bosshead, Rubber tube coil and Finger clamps. These are essential accessories to operate the Instrument and should be purchased as per the flask holding capacity of the apparatus.
Optional Accessories:
- Complete glass assembly consisting of Flask, Extractor and Allihn Condenser unit.
Note:
- Above glass assembly pricing is per set. Customer needs to place order for 3 glass parts assembly for 3 mantle heaters.
3. Mantle Type - 500 Ml X 3 Flasks:
- This apparatus is suitable to heat soxhlet flasks.
- Supplied Without glass parts, bosshead, rubber tube and clamps. These are essential accessories to operate the Instrument and should be purchased as per the flask holding capacity of the apparatus.
Optional Accessories:
- Complete glass assembly consisting of Flask, Extractor and Allihn Condenser unit.
Note:
- Above glass assembly pricing is per set. Customer needs to place order for 3 glass parts assembly for 3 mantle heaters.
4. Hot Plate Type - With 6 Hot Plates:
Optional Accessories are at extra cost:
- Soxhlet Extraction Apparatus Glass Part - Flask Cap 500ml: Price on request
- Digital Temperature Indicator with Sensors - 08 Channels - for Soxhlet Apparatus: Price on request
5. Mantle Type - 500 Ml X 6 Flasks:
- This apparatus is suitable to heat soxhlet flasks.
- Supplied Without glass parts, Bosshead, Rubber tube coil and Finger clamps. These are essential accessories to operate the Instrument and should be purchased as per the flask holding capacity of the apparatus.
Optional Accessories:
- Complete glass assembly consisting of Flask, Extractor and Allihn Condenser unit.
6. Mantle Type - 1000 Ml X 3 Flasks:
- This apparatus is suitable to heat soxhlet flasks.
- Supplied Without glass parts, Bosshead, Rubber tube coil and clamps. These are essential accessories to operate the Instrument and should be purchased as per the flask holding capacity of the apparatus.
Optional Accessories:
- Complete glass assembly consisting of Flask, Extractor and Allihn Condenser unit.
Note:
- Above glass assembly pricing is per set. Customer needs to place order for 3 glass parts assembly for 3 mantle heaters.
7. Mantle Type - 1000 Ml X 6 Flasks:
- This apparatus is suitable to heat soxhlet flasks.
- Supplied Without glass parts. finger clamps, boss head and Rubber coil. These are essential accessories to operate the Instrument and should be purchased as per the flask holding capacity of the apparatus.
