Vertical Autoclaves

Model Number : EIE-206

PDF Coming Soon...

Instant Quote

DetailsTechnical SpecificationsAccessoriesSpares

Available Variants:

Vertical Autoclave GMP Fully Automatic 30 × 50 cm - 35 Liters
Vertical Autoclave GMP Semi Automatic 30 × 50 cm - 35 Liters
Vertical Autoclave GMP Fully Automatic 35 × 55 cm - 53 Liters
Vertical Autoclave GMP Semi Automatic 35 × 55 cm - 53 Liters
Vertical Autoclave GMP Fully Automatic 45 × 60 cm - 95 Liters
Vertical Autoclave GMP Semi Automatic 45 × 60 cm - 95 Liters
Vertical Autoclave GMP Fully Automatic 45 × 75 cm - 132 Liters
Vertical Autoclave GMP Semi Automatic 45 × 75 cm
Vertical Autoclave GMP Semi Automatic 55 × 75 cm - 178 Liters
Vertical Autoclave GMP Fully Automatic 55 × 75 cm - 178 Liters
Vertical Autoclave GMP Fully Automatic 55 × 90 cm - 213 Liters
Vertical Autoclave GMP Semi Automatic 55 × 90 cm

Description:

Double wall vertical autoclave with single chamber for steam generation and water storage. Working chamber is made of stainless steel LM-304 grade having 2 mm thickness. Lid, flange and bottom sheet are made of stainless steel with all joints argon welded. Joint less silicon gasket and heavy duty industrial flange heater are provided.
Fully automatic models provide automatic air purging and automatic steam exhaust at the end of the cycle. Semi automatic models provide manual steam release at the end of cycle.
Fully automatic models provide automatic air purging and automatic steam exhaust at the end of the cycle. Semi automatic models provide manual steam release at the end of cycle.

Construction:

Double wall design.
Single chamber for steam generation and water storage.
Working chamber made of stainless steel LM-304 grade having 2 mm thickness.
Exterior body construction is provided as stainless steel LM-304 grade having 1 mm thickness in specified models, while specified semi automatic models have mild steel exterior body powder coated in attractive shades.
Lid, flange and bottom sheet are made of stainless steel. All joints are argon welded.
Joint less silicon gasket.
Heavy duty industrial flange heater.

Temperature And Pressure Control:

Microprocessor based Digital Temperature Indicator cum Controller.
PID Controller controls temperature/pressure precisely at set value.
Lid fitting pressure gauge 0–30 PSI.
Pressure range 15 to 22 PSI, factory set at 15 PSI.
Temperature range 121°C to 125°C.
Temperature resolution 0.1°C.
Temperature accuracy ±0.5°C.
PT-100 temperature sensor.

Fully Automatic Operation:

Cycle is commenced by pressing the START button.
Initial air purging cycle automatically removes air from the chamber.
Automatic steam exhaust is provided at the end of the cycle.
Solenoid valve provides initial automatic air purging and automatic steam exhaust/depressurization.

Safety Features:

Low water level heater safeguard.
Low water level cut off.
Safety high pressure release valve with spring loaded mechanical valves.
Safety high temperature cut off.

Documentation And Validation:

Calibration certificate with traceability.
DQ, IQ, OQ, PQ documentation available at extra cost / optional for pharma industries as specified in the source.
Validation ports provided for temperature mapping as standard supply.
On-site validation is at extra cost where specified.

Fully Automatic – 30 × 50 cm – 35 LitersSpecification are as follow:
Operation TypeFully Automatic Operation
Working Chamber Size30 cm × 50 cm (Dia × Height)
Volume35 Liters
PowerRating 1 KW
Operates On230V/15A/50 Hz
Safety Valves01 Solenoid valve, 02 Mechanical Valves set at different PSI & 01 Manual release valve
Semi Automatic – 30 × 50 cm – 35 LitersSpecification are as follow:
Working Chamber Size30 cm × 50 cm (Dia × Height)
Volume35 Liters
DisplayDigital Display
Inner ChamberStainless steel LM-304 grade
Exterior BodyStainless steel LM-304 Grade having 1 mm thickness
Operation TypeSemi automatic operation
Sterilization TimerIn built digital timer; timer can be adjusted as per sterilization load requirement
Temperature ControlMicroprocessor based Digital Temperature Indicator cum Controller
Temperature SensorPT-100
Working Pressure Range15 to 22 PSI, factory set at 15 PSI
Temperature Range121°C to 125°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C
Safety Valves02 Mechanical Valves, 01 Manual release valve
PowerRating 2 KW
Operates On230 V/15 A/50 Hz
Fully Automatic – 35 × 55 cm – 53 LitersSpecification are as follow:
Overall Dimensions860 × 740 × 1100 (L × W × H) mm
Operation TypeFully Automatic Operation
Temperature ControllerMicroprocessor based Digital Temperature Indicator cum Controller
DisplayDigital Display
Temperature SensorPT-100
Pressure Range15 to 22 PSI, factory set at 15 PSI
Temperature Range121°C to 125°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C
Working Chamber Size35 cm × 55 cm (Dia × Height)
Volume53 Liters
PowerRating 1.5 KW
Operates On230V/15A/50 Hz
Sterilization TimerIn built digital timer; timer can be adjusted as per sterilization load requirement
Safety Valves01 Solenoid valve, 02 Mechanical Valves set at different PSI & 01 Manual release valve
Semi Automatic – 35 × 55 cm – 53 LitersSpecification are as follow:
Working Chamber Size35 cm × 55 cm (Dia × Height)
Chamber Volume53 Liters
DisplayDigital Display
Inner ChamberStainless steel LM-304 grade
ExteriorStainless steel LM-304 grade
Operation TypeSemi automatic operation
Sterilization TimerIn built digital timer; timer can be adjusted as per sterilization load requirement
Temperature ControlMicroprocessor based Digital Temperature Indicator cum Controller
Temperature SensorPT-100
Working Pressure Range15 to 22 PSI, factory set at 15 PSI
Temperature Range121°C to 125°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C
Safety Valves02 Mechanical Valves, 01 Manual release valve
PowerRating 3 KW
Operates On230 volts, 50 Hz, single phase, AC Supply
Fully Automatic – 45 × 60 cm – 95 LitersSpecification are as follow:
Overall Dimensions950 × 850 × 1150 (L × W × H) mm
Operation TypeFully Automatic Operation
Temperature ControllerMicroprocessor based Digital Temperature Indicator cum Controller
DisplayDigital Display
Temperature SensorPT-100
Pressure Range15 to 22 PSI, factory set at 15 PSI
Temperature Range121°C to 125°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C
Working Chamber Size45 cm × 60 cm (Dia × Height)
Volume95 Liters
PowerRating 1.5 KW
Operates On230V/15A/50 Hz
Sterilization TimerIn built digital timer; timer can be adjusted as per sterilization load requirement
Safety Valves01 Solenoid valve, 02 Mechanical Valves set at different PSI & 01 Manual release valve
WeightApprox. 116 Kg
Semi Automatic – 45 × 60 cm – 95 LitersSpecification are as follow:
Working Chamber45 cm × 60 cm (Dia × Height)
Chamber Volume95 Liters
DisplayDigital Display
Inner ChamberStainless steel LM-304 grade
Exterior BodyMild Steel, powder coated in attractive shades
Operation TypeSemi automatic operation
Sterilization TimerIn built digital timer; timer can be adjusted as per sterilization load requirement
Temperature ControllerMicroprocessor based Digital Temperature Indicator cum Controller
Temperature SensorPT-100
Working Pressure Range15 to 22 PSI, factory set at 15 PSI
Temperature Range121°C to 125°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C
Safety Valves02 Mechanical Valves, 01 Manual release valve
PowerRating 2 KW
Operates On230 V/15 A/50 Hz
Fully Automatic – 45 × 75 cm – 132 LitersSpecifications are as follow:
Operation TypeFully Automatic Operation
Temperature ControllerMicroprocessor based Digital Temperature Indicator cum Controller
DisplayDigital Display
Temperature SensorPT-100
Pressure Range15 to 22 PSI, factory set at 15 PSI
Temperature Range121°C to 125°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C
Working Chamber Size45 cm × 75 cm (Dia × Height)
Volume132 Liters
PowerRating 2 KW
Operates OnOperates On
Sterilization TimerIn built digital timer; timer can be adjusted as per sterilization load requirement
Safety Valves01 Solenoid valve, 02 Mechanical Valves set at different PSI & 01 Manual release valve
Semi Automatic – 45 × 75 cmSpecifications are as follow:
Operation TypeSemi Automatic operation
Working Chamber MaterialStainless steel LM-304 grade having 2 mm thickness
Exterior BodyStainless steel LM-304 grade having 1 mm thickness
Temperature ControllerMicroprocessor based Digital Temperature Indicator cum Controller
Pressure Gauge0–30 PSI
Pressure SafetySafety spring loaded mechanical pressure valves
Hydraulic Test60 PSI pressure
CalibrationCalibration certificate with traceability
DQ, IQ, OQ, PQOptional for pharma industries
Validation PortsProvided for temperature mapping as standard supply
On-site ValidationAt extra cost
Common Specification in All VariantsSpecifications are as follow:
Temperature ControllerMicroprocessor based Digital Temperature Indicator cum Controller
DisplayDigital Display
Temperature SensorPT-100
Pressure Range15 to 22 PSI, factory set at 15 PSI
Temperature Range121°C to 125°C
Temperature Resolution0.1°C
Temperature Accuracy±0.5°C
Sterilization TimerIn built digital timer; timer can be adjusted as per sterilization load requirement
Hydraulic Test Pressure60 PSI
Working Chamber MaterialStainless Steel LM-304 Grade, 2 mm thickness
Lid, Flange & Bottom SheetStainless Steel, all joints argon welded
GasketJoint less silicon gasket
HeaterHeavy duty industrial flange heater

Validation Of Vertical Autoclave

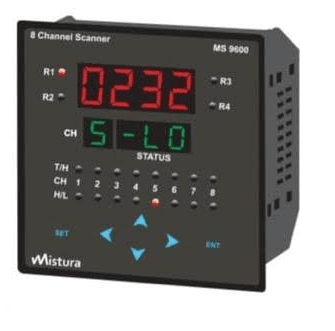

Four Channel Data Logger With 3 + 1 Sensors & Digital Pid Controller With Rs-485 Facility For Vertical Autoclave

Single Channel Data Logger With Printer Interface & Digital Controller With Rs-485 Facility For Vertical Autoclave
