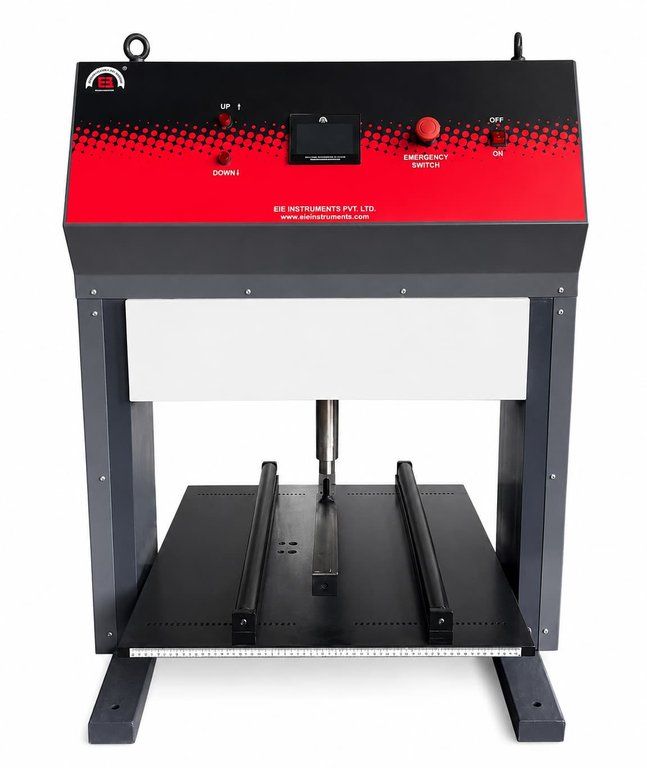

Bending Strength Test

As per IS : 13630 (Part - 6), ISO 10545 (Part-4), with TOUCH SCREEN control panel and automatic pace rate control to control the rate of loading at 1 Newton per mm square per second. Capacity 1000 kgf. Least count 0.1 kgf. with adjustable test span to accommodate different size tile specimen up to 100 x 100 cm. Direct reading of MOR value in KN or Kgf. Working on 230 V AC single Phase 60 Hz. PC connectivity with software available at extra cost. Detailed description as per the following pages.

Plain with knobbed lid, neutral glass, with porcelain perforated plate.

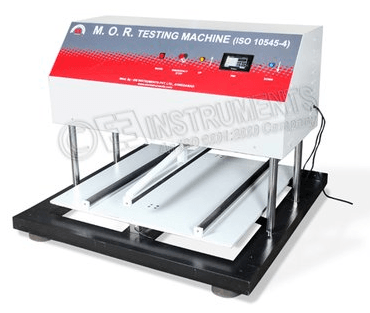

The equipment complies with the requirements of: IS 13801 – Annex F and IS 1237 – Annex F. Also available as per ASTM C1167 (Roofing Tiles – Transverse Strength) and EN 538 (Clay Roofing Tiles – Flexural Strength)
