Details:
Compliance standards:
- EN ISO 10545-12
- ASTM C1026, IS 13630 (Part-10) (amended in 2019)
Salient features:
- Suitable for tile size up 500 X 500 mm
- Designed to match the IS : 13630 (part 10) and EN ISO 10545-12
- Capable to conduct automated freeze thaw cycle automatically
- Capable to reduce temperature from 5°C to (- 5°C) within the permissible limit of 0.5 °C and capable to maintain the temperature @ (-5 °C) for 15 mins automatically. After that it has facility to reach (+5 °C) rapidly. This is the completion of one freeze-thaw cycle.
- Capable to conduct the pre decided freeze-thaw cycles (100 cycle as per BIS 13630)
- Fully automatic touch screen PLC - HMI based programming
- CFC free refrigeration system
- Heavy duty Castor wheels for easy movement
- Fin & Tube type air-cooled condenser
- Double Gasket system for leak proof Design
- Heavy duty hinges with toggle type
- Auto removal of water as soon as temperature reaches to 5 °C, while operating in freezing cycle.
- Auto insertion of water as soon as temperature reaches to 5 °C, while operating in thawing cycle.
- Capable to place 10 samples vertically
- The samples will be covered with water 50 mm above the top height of the sample
Note
Following accessories are required to conduct the entire experiment as per ISO 10545-12 Standard and shall be procured aat extra cost.
(1) Hot air oven
(2) Electronic Balance

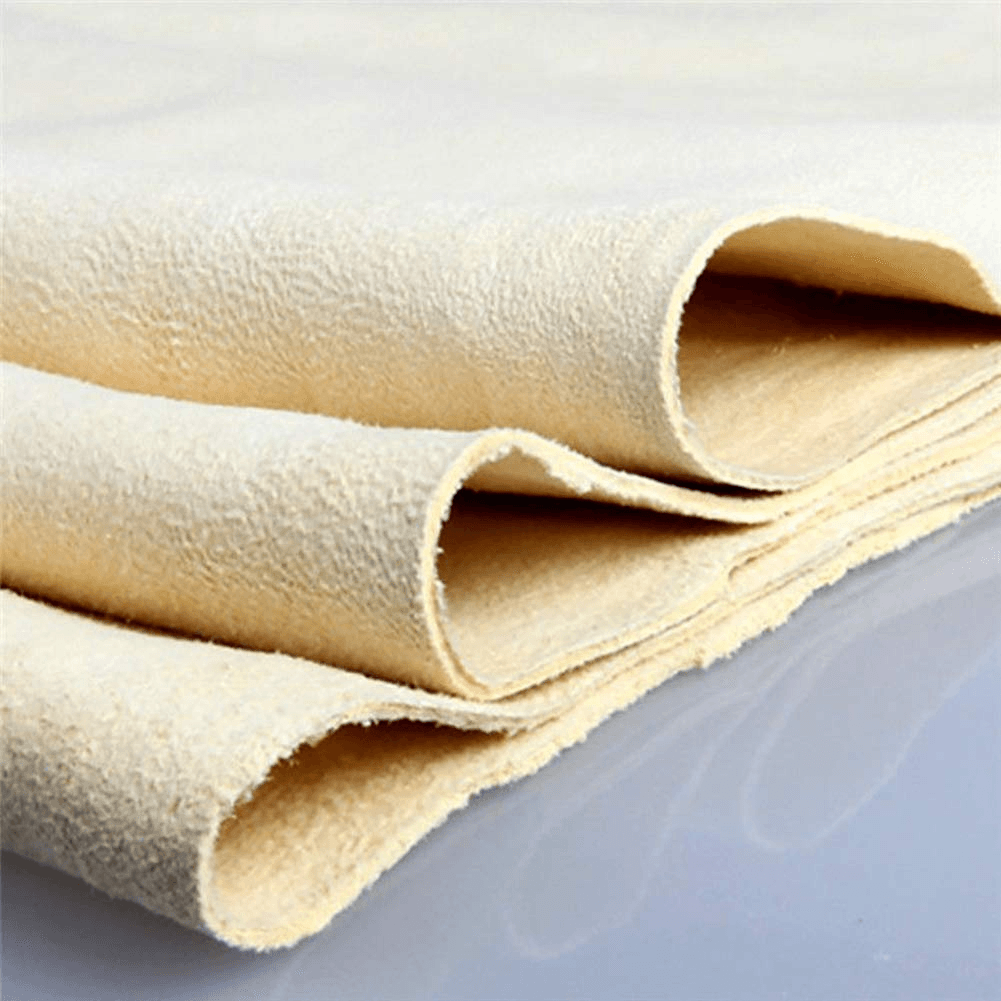

(3) Chamois Leather
(4) WATER IMPREGNATION CHAMBER FOR FROST RESISTANCE TESTER - 500 X 500 MM TILES - BIS 13630 - 10
