Complies to following International Standard:
- ASTM D5, ASTM D217, ASTM D937, ASTM D1321
Salient Features:
- Fully Automatic operational Design
- Compact design and rugged construction ensures long service life and facilitates easy transport for field applications.
- Graphical display
- Opto-electronically depth detection & measurement through imported Opto-electronic sensor
- Automatically timed programmable penetration measurements ‑ Preset penetration time at factory (Operator can also enter the user defined penetration interval through touch screen)In‑built Facility to tare and reset the measurement results
- Display resolution of penetration depth in tenths of units (0.1mm)
- Magnifying lens for adjusting needle tip/cone tip exactly on the sample surface
- Low voltage Illuminator mounted on flexible arms to assist an operator during testing
- Built‑in spirit level and leveling screws to ensure proper alignment
- Micrometer differential gearing mechanism for fine movement of head
- Weight of the Needle/Cone and plunger match the criteria of ASTM and IP requirements.
- The penetration time is controlled and indicated on Digital LCD display with least count of 0.1 second.
- The Opto-electronic sensor installed within the instrument detects the penetration depth in 10th of millimeter (0.1mm)
- The penetration value is measured and indicated on digital LCD display
- Saves last 10 average readings
- Supplied complete with Needle/cone, container and applicable weight
Supplied complete with following Accessories in case of Bitumen penetration:
- Weight of 50 Grams ± 0.05gm: 1 No.
- Weight of 100 Grams ± 0.05gm: 1 No.

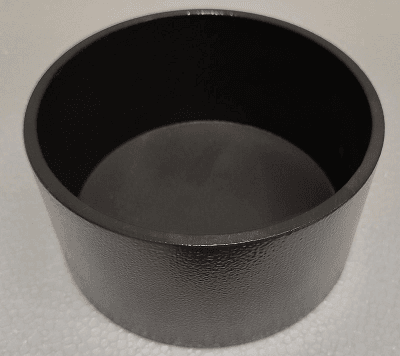

- Penetration cup of 55mm diameter x 35mm height: 1 No.
- Penetrometer Needle as per ASTM D5 : 2.5 gm ± 0.05 gm: 1 No.
- Needle Holder 47.5g ± 0.05g: 1 No.
Note:

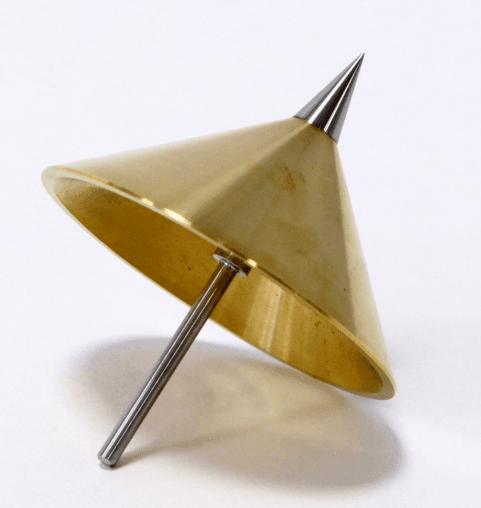

- Penetration Kit as per ASTM D217, ASTM D937, ASTM D1321 can also be supplied as per the application of the user. Please specify at the time of the order
- Please specify the intended penetration test at the time of placing the order. Instrument will be supplied with corresponding penetration accessories only.
