Bitumen Testing Instruments

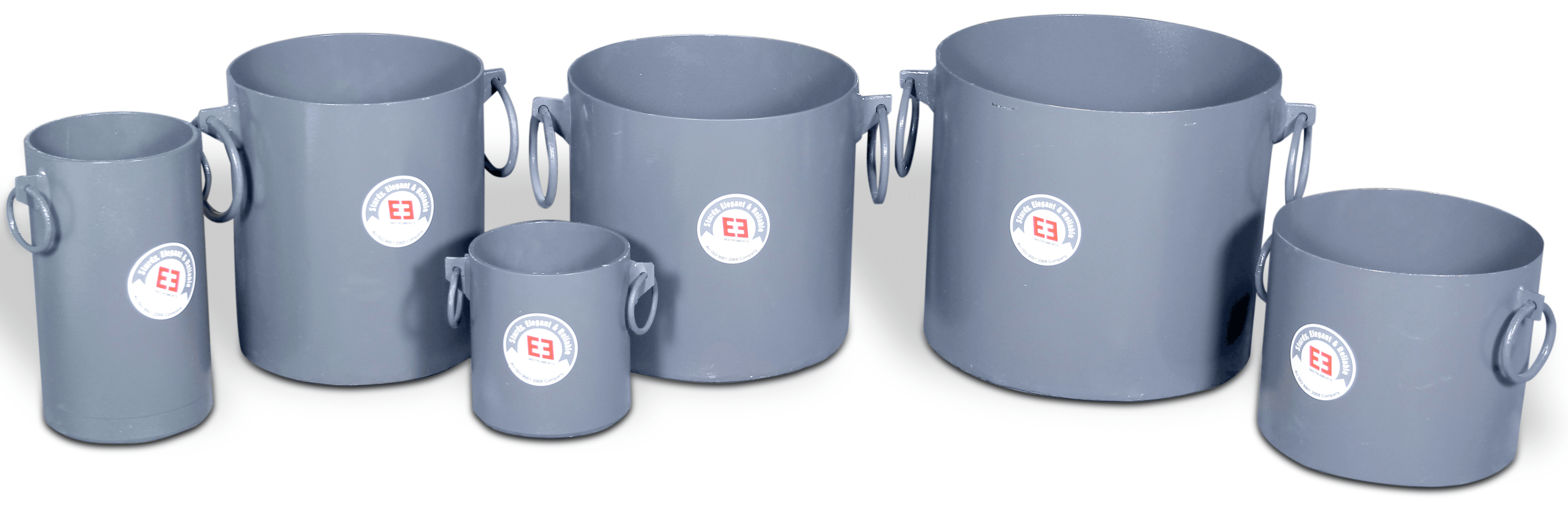

Bulk Density Cylindrical Metal Measure is designed for the measurement of unit weights and voids in aggregate. It is used for the determination of bulk density and voids of aggregate for concrete, weight per cubic meter, yield, cement factor and air content of freshly mixed concrete.

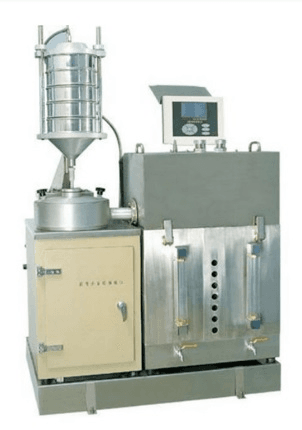

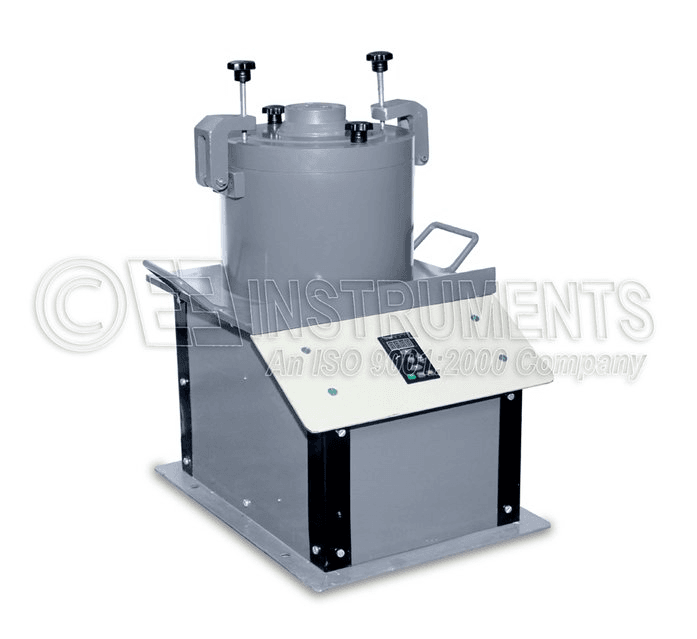

The automatic Bitumen Extractor is used for the separation and extraction of bitumen by use of perchloroethylene or trichloroethylene solvents and sieving, for the separation of filler by centrifuge action and for the recovery of solvent material. The complete cycle is carried out automatically. As per ASTM D2172 and EN 12697-1

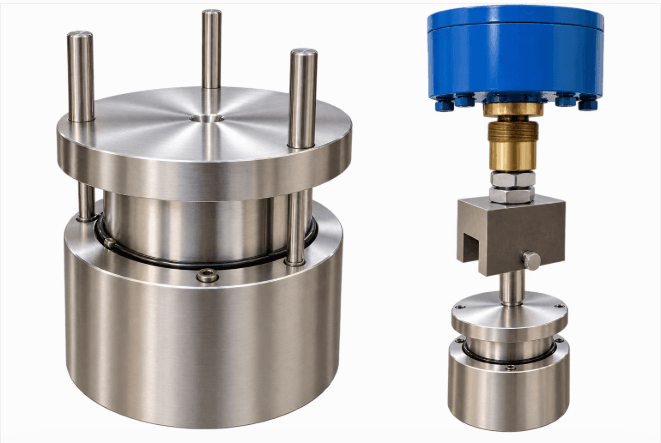

EIE Make ‑ Computerized POKER CHIP testing machine having capacity of 0‑500 Kgf (5 KN) (5000 N). Supplied complete with all accessories as mentioned in the long description

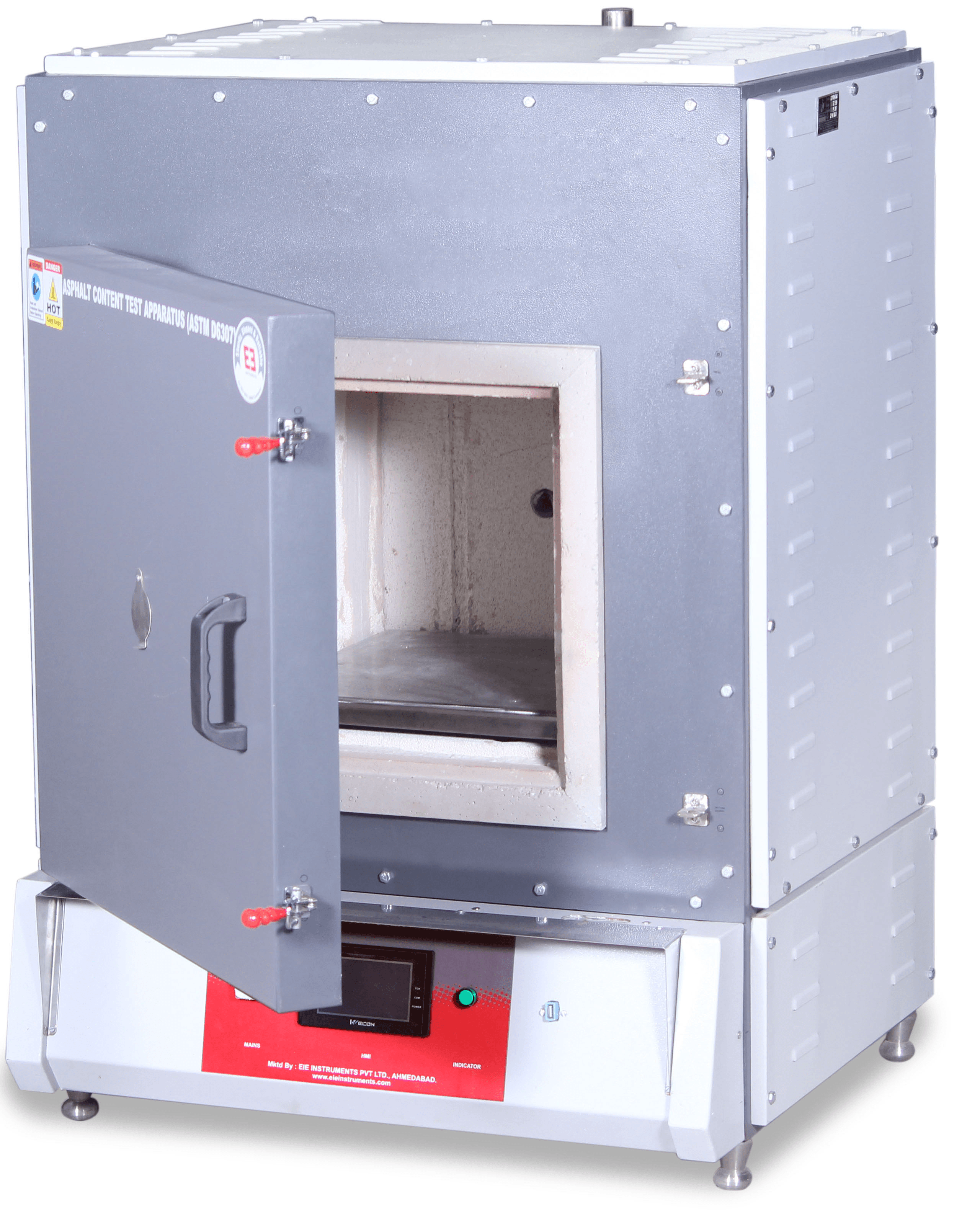

Compliance Standards : ASTM D6307-98 and AASHTO T30. The Asphalt Content/Binder Furnace with internal automatic balance is an environmentally-friendly and cost-effective method for the accurate determination of asphalt content. Ignition method reduces testing time compared to solvent testing methods and automatic operation frees technicians for other tasks. Accurate internal balance monitors weights automatically throughout ignition. Easy operation- simply enter sample weight, calibration factor, load the sample, and push start, when unit beeps at test end, push stop, and sign receipt.

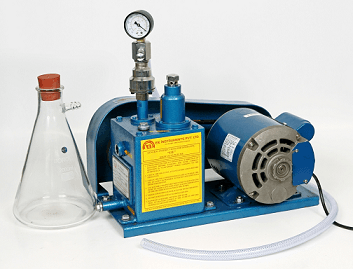

Complete with Vacuum Pump, GMM Flask of 2 ltr or 5 Ltr. Capacity and 1.5 meter high pressure rubber tubing.

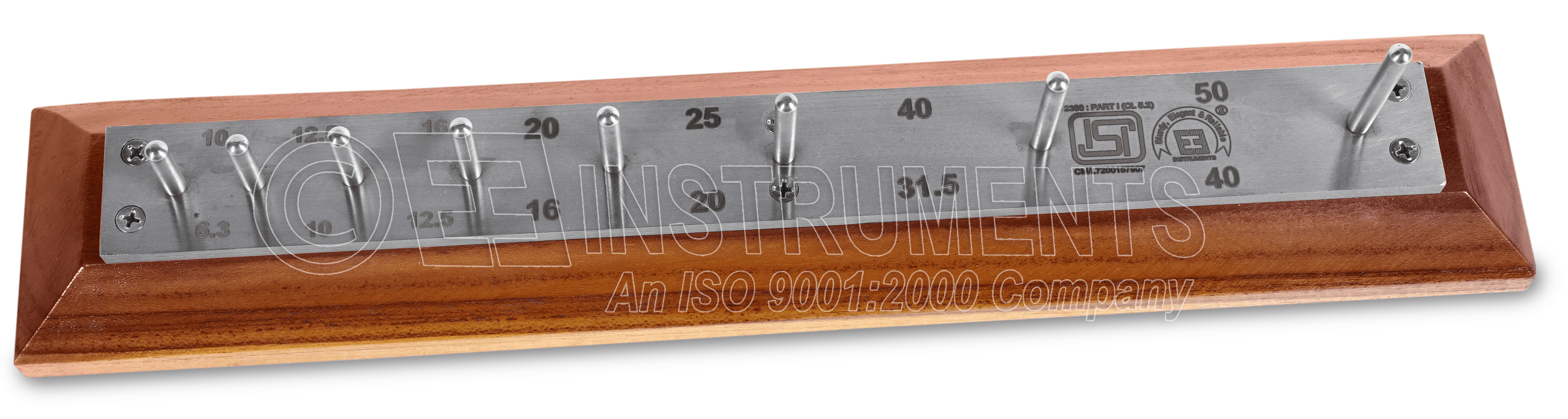

Used for determining the elongation index of coarse aggregates, ensuring proper shape for road construction and bituminous mix design.

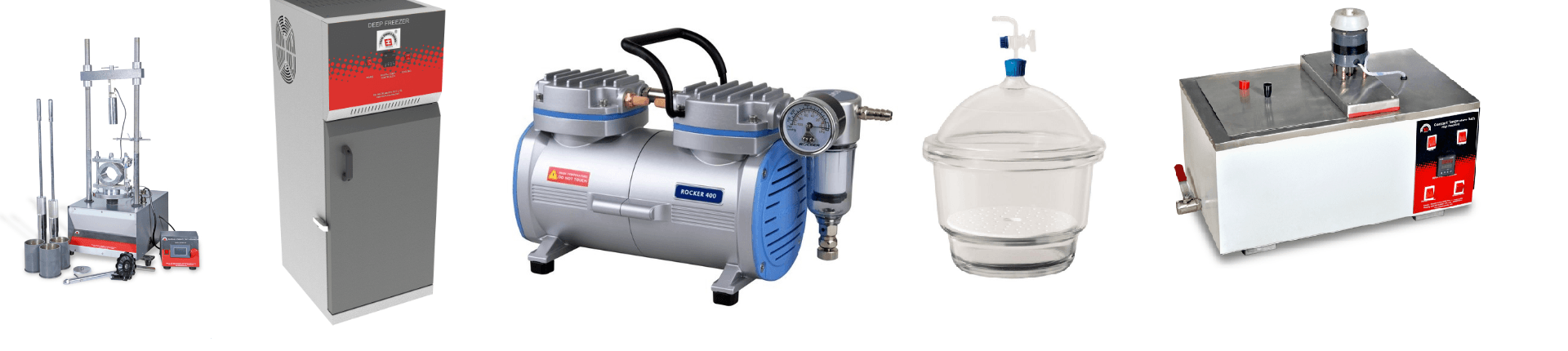

There are four different methods of testing water sensitivity were evaluated. Each test method required specimens to be compacted to an air void level near that of field conditions (7 to 9 percent). Each method called for vacuum saturation of the samples with water. Three of the four test methods used freeze-thaw cycles to further condition the specimens. Measurements of indirect tensile strength were determined for conditioned and unconditioned specimens. Measurements on conditioned specimens were taken at SSD conditions and compared with the test results of the unconditioned samples. The apparatus consists of 1) Marshal stability 100 kN capacity 2) Indirect tensile strength attachment for 4" & 6" 3) Vacuum desiccator with vacuum pump 4) Deep freezer of -40°C. 5) Constant temperature water bath to cure samples at 60°C.

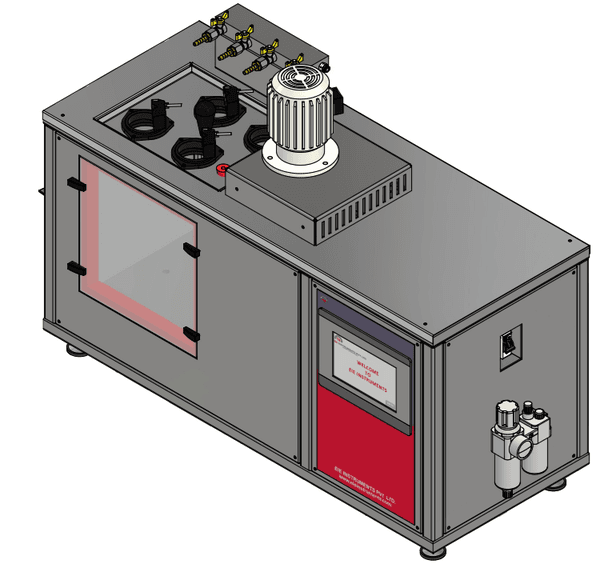

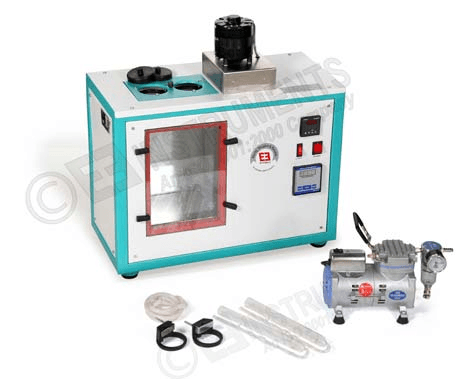

As per IS : 1206 (Part II) and (Part III), (ASTM D 2171 and 2170) Method for Testing Tar and Bitumen Materials. Supplied complete with Viscosity bath with built in Digital stop watch, Vacuum Pump. CANON or Equivalent Make Vacuum Manning Viscometer No.12 and 13, CANON or Equivalent Make Reverse flow Viscometer, Silicon oil, silicon tubes and calibration certificate for Viscosity bath, certificate of constant for Viscometers. Complete with instruction manual.

No description available.

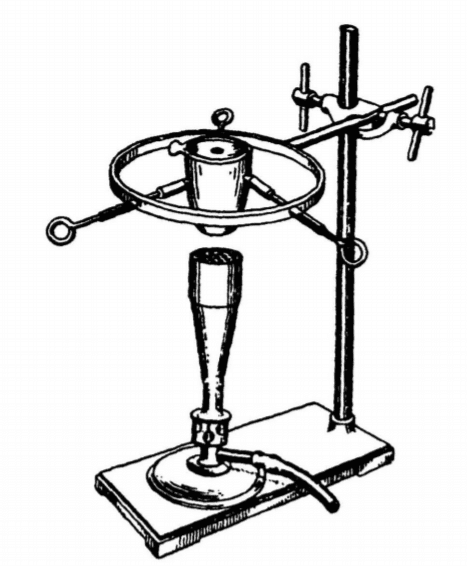

To determine the volatile matter content of tar and bituminous materials by measuring the loss of weight upon heating.

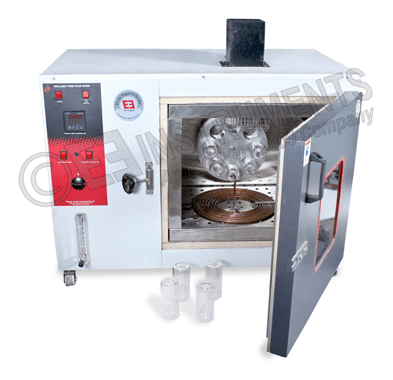

The Rolling Thin Film Oven (RTFO) is designed to evaluate the short-term aging resistance of bituminous binders. This test simulates the hardening process that occurs during the mixing of binder with aggregates in a plant and the subsequent finishing and rolling of bituminous layers. The RTFO assesses how the binder's properties change under heat and air exposure, providing critical data on its durability and performance. The RTFO test involves subjecting the binder to controlled heat and airflow to simulate aging conditions, preparing samples for further evaluation of their performance characteristics. Complies with: ASTM D2872 / AASHTO T240 / CNR N.54 / EN 12607-1 / IS 15799-2008.

Supplied with standard accessories relevant to perform on a wide variety of materials such as grease, petroleum, Wax, Polish, foodstuff, rubber asphalts and Pharmaceutical creams with the appropriate penetration tools and Cups, which are available at extra cost on demand.

The softening point test determines the temperature at which bitumen or other bituminous materials soften under specified conditions. The test is essential for evaluating the consistency and temperature susceptibility of bituminous binders used in road construction and other applications. Can also be supplied for the Thermoplastic Adhesive, Resin, Plastic, Paraffin wax, rubber, grease and various other material as per their respective test standards.

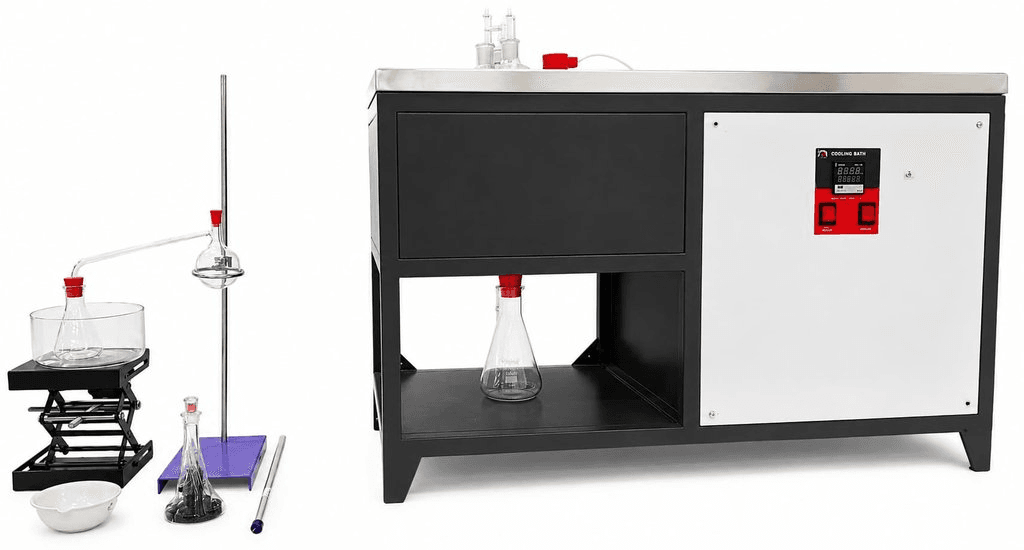

The Wax Content Testing Apparatus, as per IS 10512:2003, enables accurate determination of paraffin wax content in bitumen and bituminous binders through controlled distillation. Designed for precise, standardized analysis, it is ideal for laboratories handling bitumen quality assessment. As per IS 10512:2003,ASTM D721, IP 47

As per IS: 1206 (Part II and III).Supplied complete with Viscosity bath with built in Digital stop watch, Vacuum Pump - capable to maintain vacuum of 300 mm/Hg, Indian Make Vacuum Manning Viscometer No.12 and 13, Reverse flow Viscometer No.6, Silicon oil, silicon tubes and calibration certificate for Viscosity bath, certificate of constant for Viscometers. Complete with instruction manual. Canon USA Make Glass U Tube Viscometer, Mercury Manometer, Digital Vacuum Indicator cum controller etc. are available.

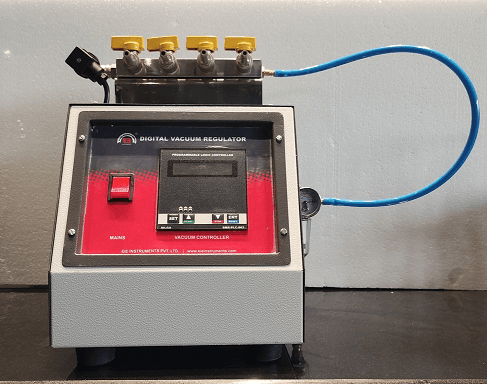

Digital 4 station Vacuum indicator cum controller with vacuum pump, as a attachment to Viscosity bath . Supplied without Viscosity bath. Complete with vacuum manifold to offer 4 positions and all tubing to perform the test.. The system can regulate the vacuum, within 0.5 mm Hg (or mBar) of its set point when connected to Vacuum Pump,Supplied with built in Vacuum Pump

ASTM D2041-04

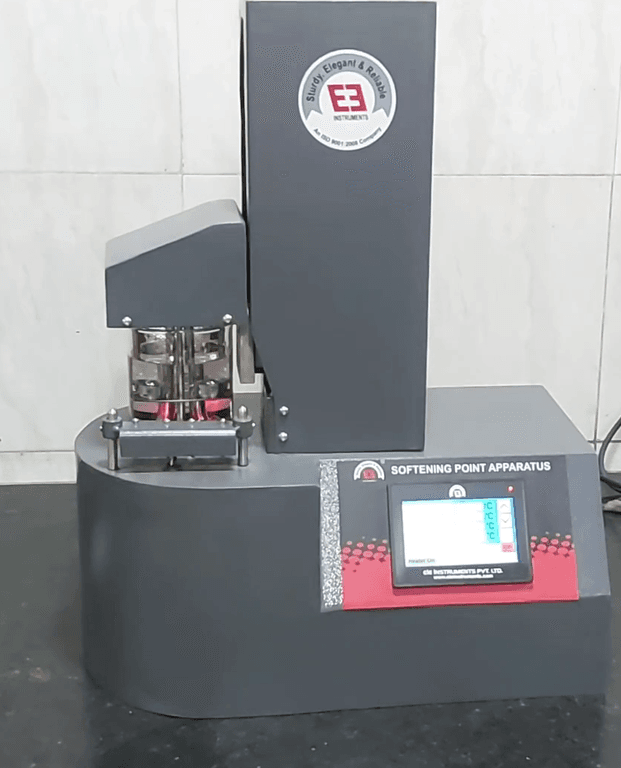

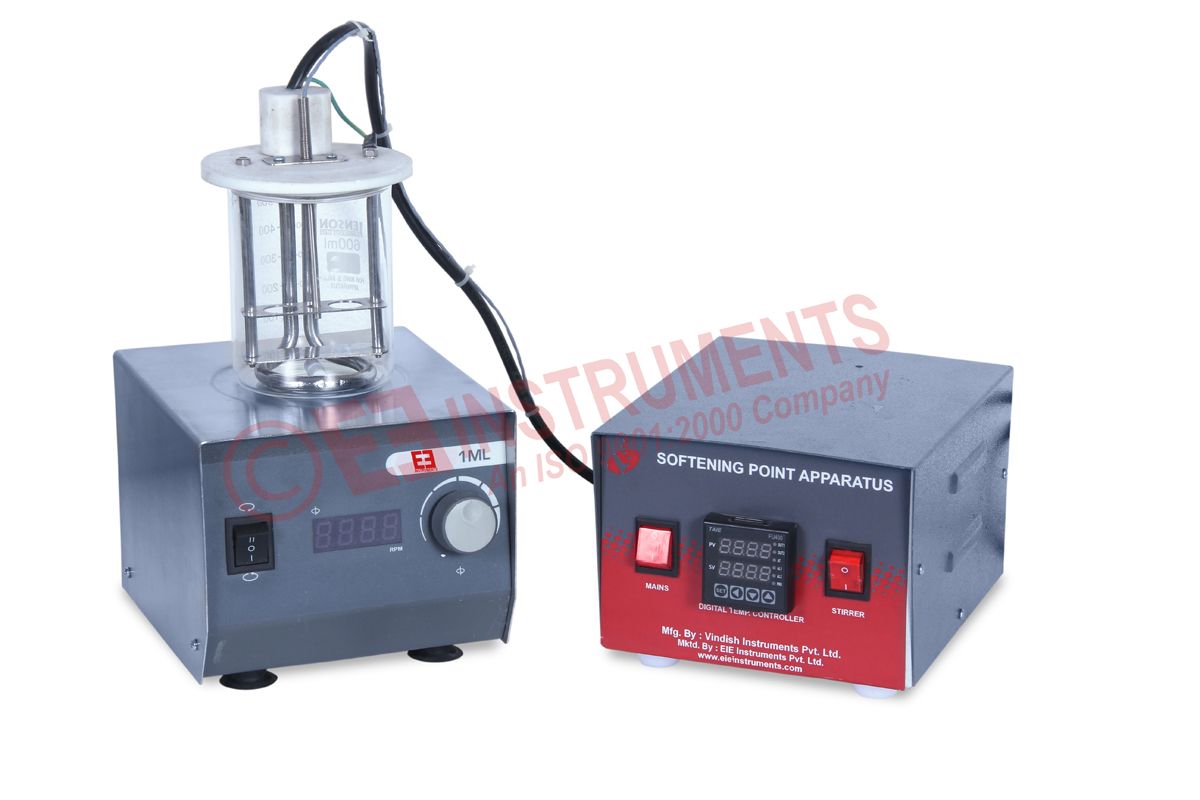

Ring And Ball Apparatus (Softening Point Apparatus)

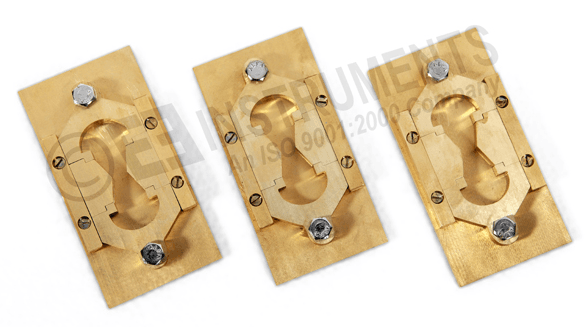

Ductility Mould with base plate for casting

No description available.

No description available.

No description available.

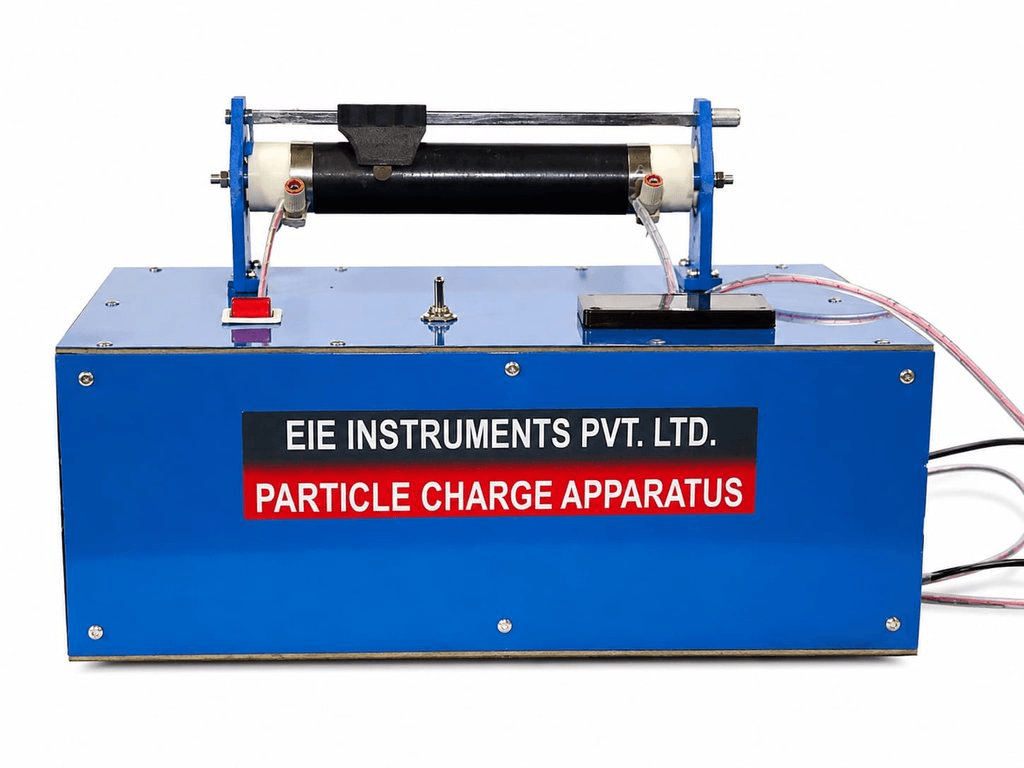

Compliance Standards: EN 1430, ASTM D244

Supplied with Digital waterbath, a Glass Thermometer and a Digital stop watch. As per IS 11195-2002 (R.A.2017) BS 6925-1988.

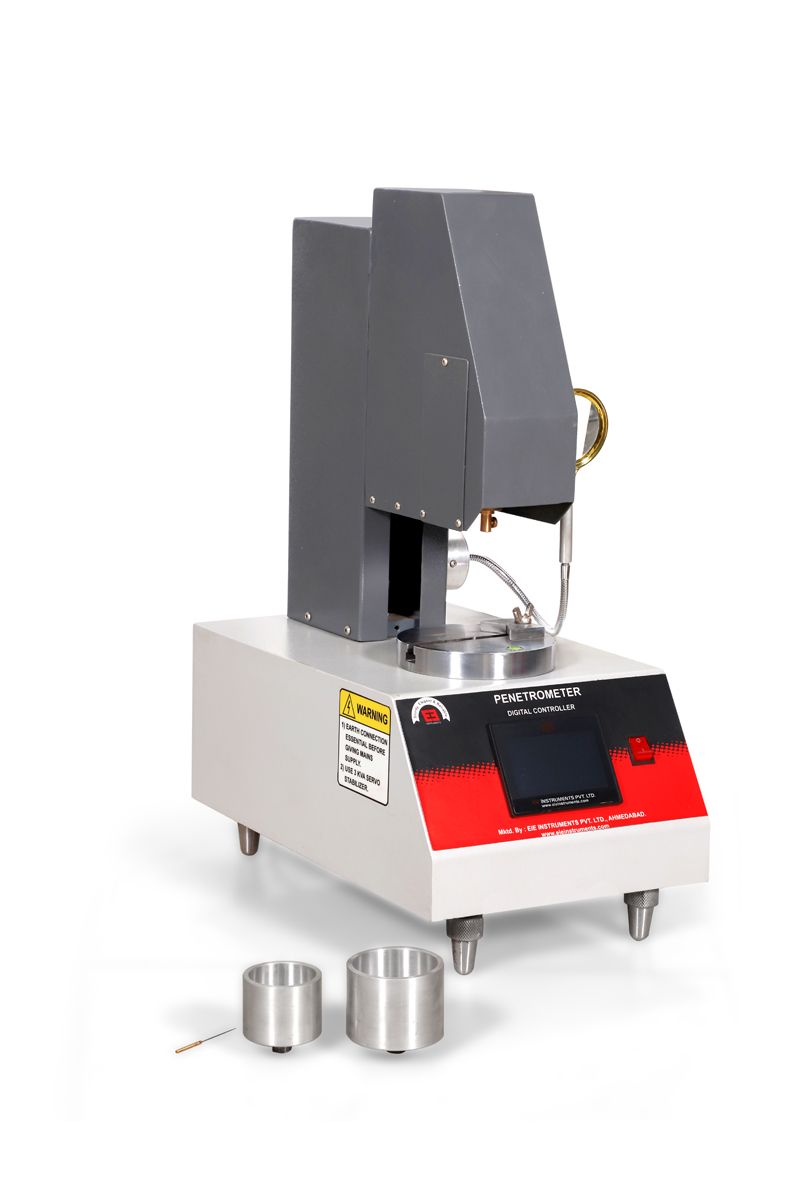

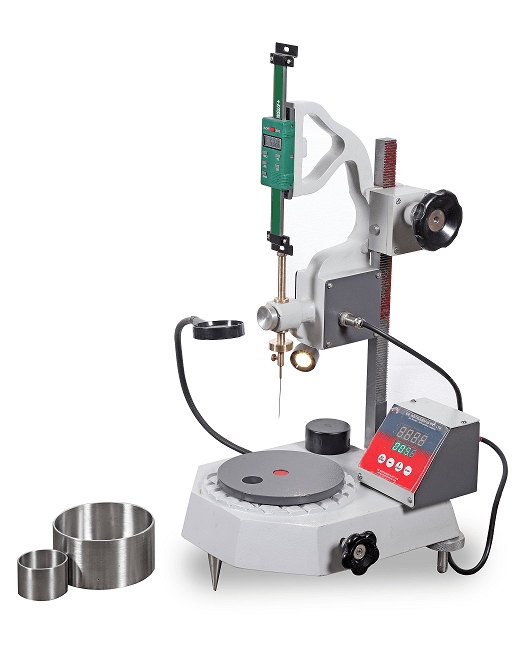

As per IS 1203, IS 1448. ASTM D5. In addition to regular features, this model is Fitted with Micrometer differential gearing system for fine movement of penetration needle. Complete with Automatic Digital Timer, Digital Penetration indicator, Penetration cup and transfer dish. Water bath to condition the sample is available at extra cost.

Made of Aluminum Material, Slope Ratio : 2.5% or as specified by IRC SP:20-2002 and IRC SP:42-1994,(Please confirm the slope ratio at the time of order)

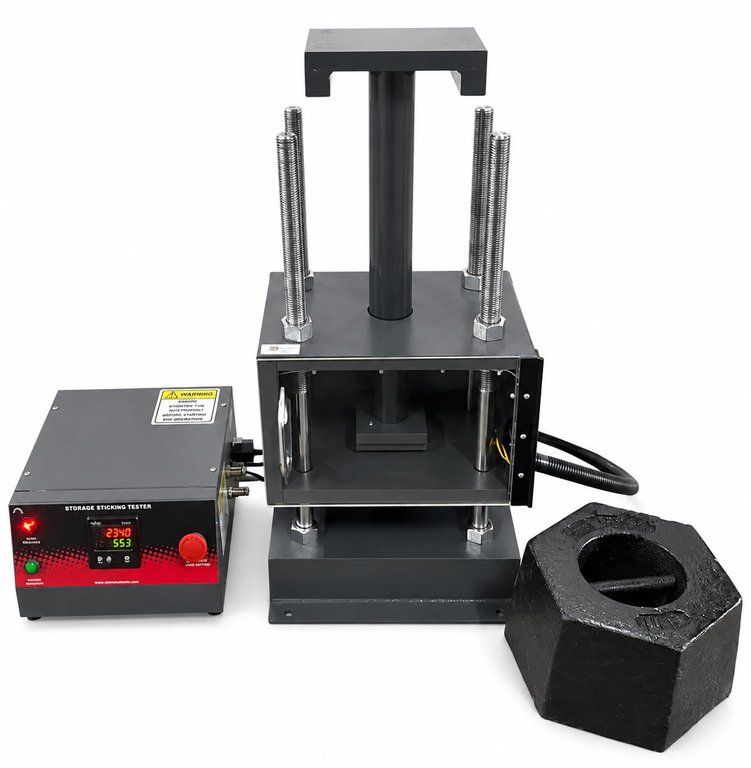

Apparatus for the determination of storage sticking property of the Bitumen based felt. Storage sticking is the property of bitumen based felt due to which layers of felts kept together have tendency to stick. A chamber, suitably fitted with a thermostated, capable of maintaining a constant temperature of 55 ± 2°C or higher temperature as per the requirement of the particular type of the felt for 18 hours.

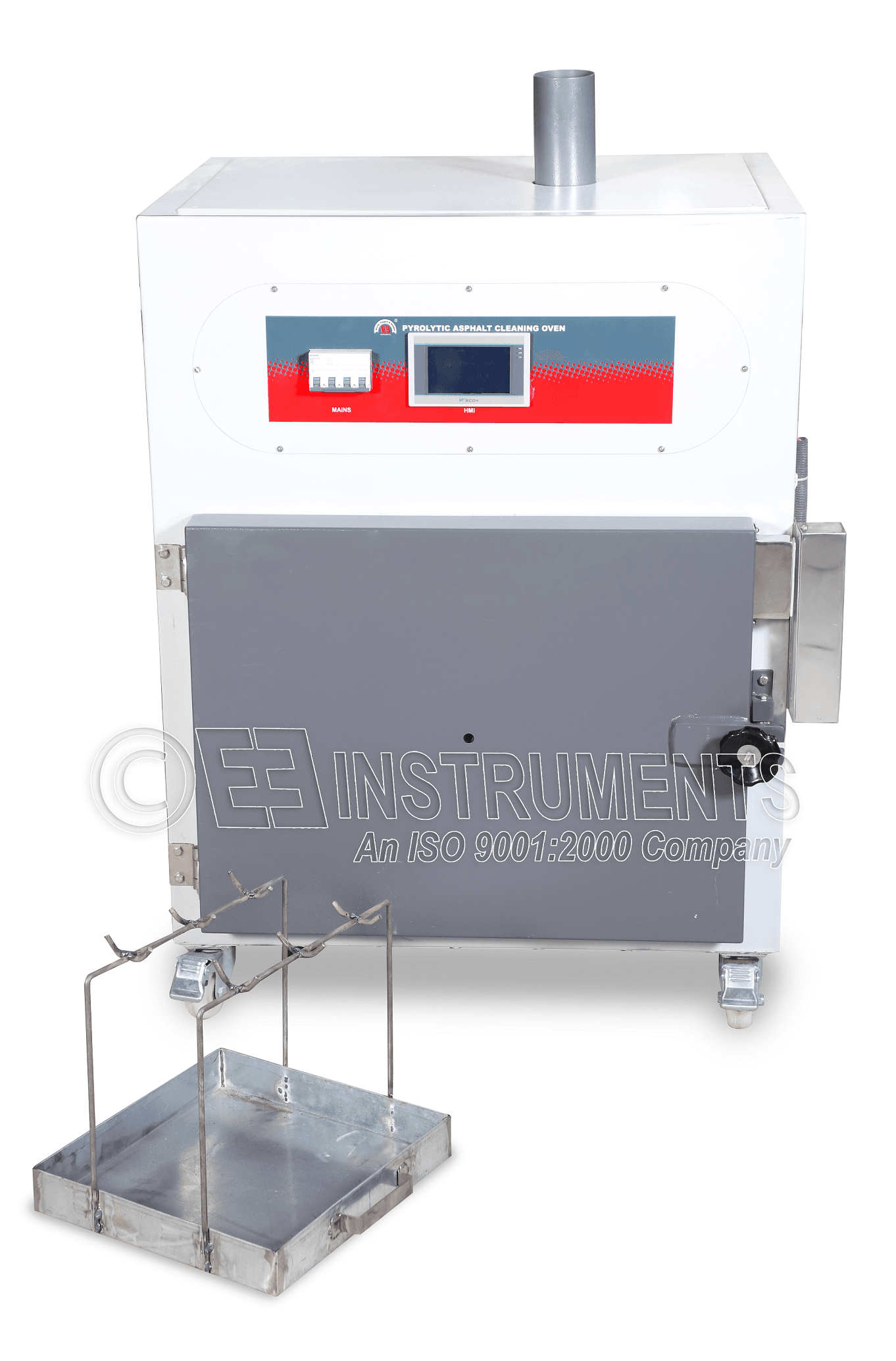

The pyrolytic oven is widely used in laboratories for solvent-free cleaning of glassware and other lab equipment. This type of oven operates by heating materials to high temperatures to burn off organic residues, including asphalt, oils, or chemical remnants, making it especially useful for delicate or intricate lab items where solvent-based cleaning might be unsuitable.

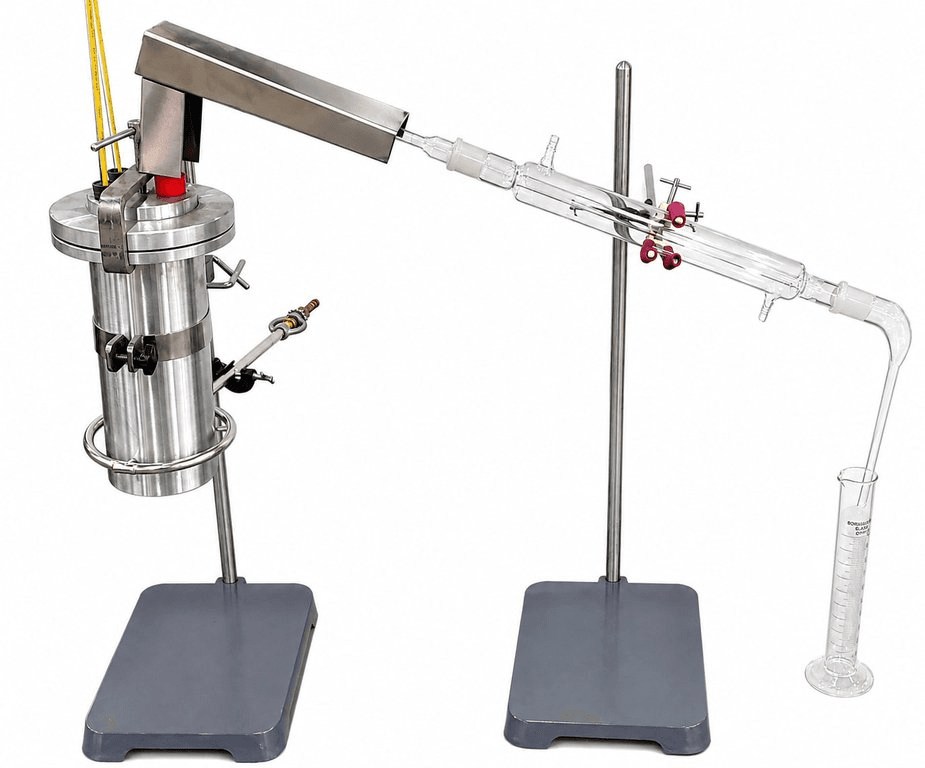

The distillation of emulsified asphalt is performed to determine the water and residual asphalt content of emulsified asphalts. The process separates water from asphalt by applying heat and measuring the residue. Complies with ASTM D244, ASTM D6997, AASTHO T59.

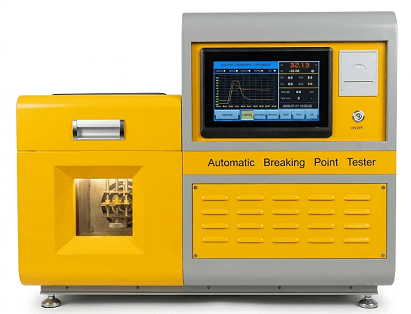

This instrument is used to determine the temperature which a bitumen tends to break rather to flow when cooled and stressed . It can do three tests at the same time in the same environment and calculate the average value.The cooling rate is controlled by computer. It is controlled by micro computer. The cooling rate is controlled automatically. It has automatically timing to bend samples.The test data is shown on the colored LCD and output on built-in printer. Supplied complete with Automatic Breaking Point Tester, Low temp.cyclic Thermostatic bath, Stainless steel sample piece(6 Nos.) and necessary rubber tubings. Other necessary Instruments Viz. Hot Plate, Furnace, Weighing Balance and solvents etc.

This instrument is made and designed as per ASTM D6648, BS EN 14771, AASHTO T313. Complete with PC and software but without air compressor and Bath fluid (available at extra cost)

As per IS: 1206 (Part II and III).Supplied complete with Viscosity bath with built in PLC,HMI and digital vacuum controller with Vacuum Pump -capable to maintain vacuum of 300 mm/Hg, Indian Make Vacuum Manning Viscometer No.12 and 13, Reverse flow Viscometer No.6 with certificate of constant and calibration certificate for Viscosity bath, Complete with instruction manual. Detailed Specification as mentioned in technical part mentioned below. Canon USA Make Glass U Tube Viscometer, Mercury Manometer, Silicon oil, silicon tubes etc. are available at extra cost

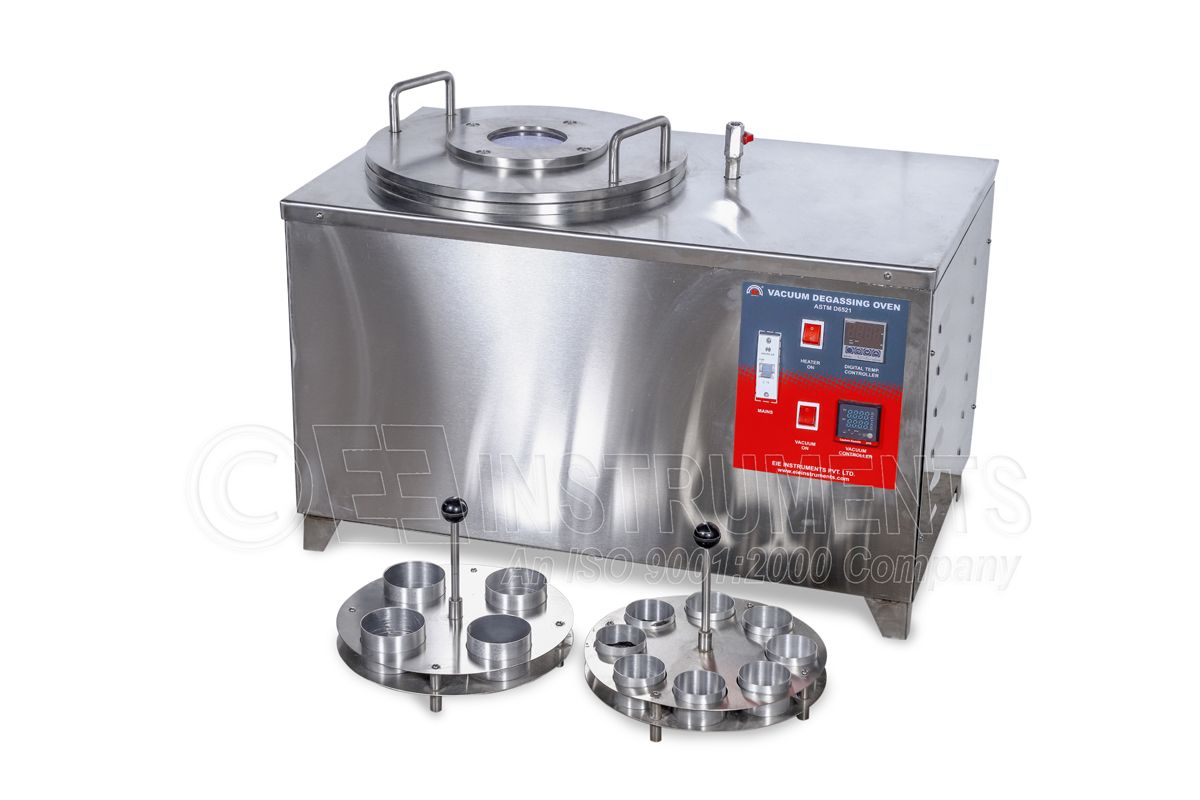

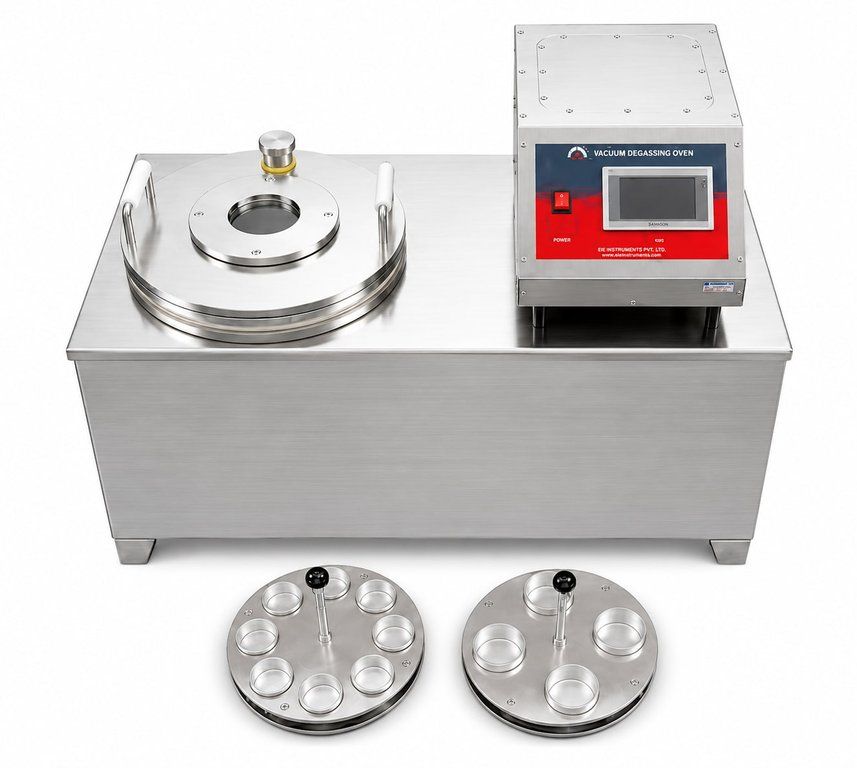

The Vacuum Degassing Oven (VDO) from EIE has been designed to degas pressure aged binder samples to precisely and accurately meet AASHTO R28-06 and ASTM D6521-05 standards.

No description available.

The Vacuum Degassing Oven (VDO) from EIE has been designed to degas pressure aged binder samples to precisely and accurately meet AASHTO R28-06 and ASTM D6521-05 standards.

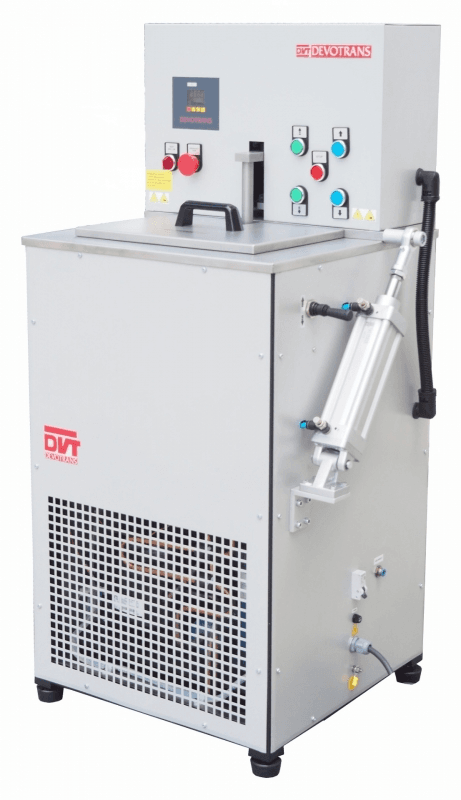

Used to determine flexibility and cracking resistance of bitumen sheets at low temperatures. Used to determine minimum bending temperature in cold environment.

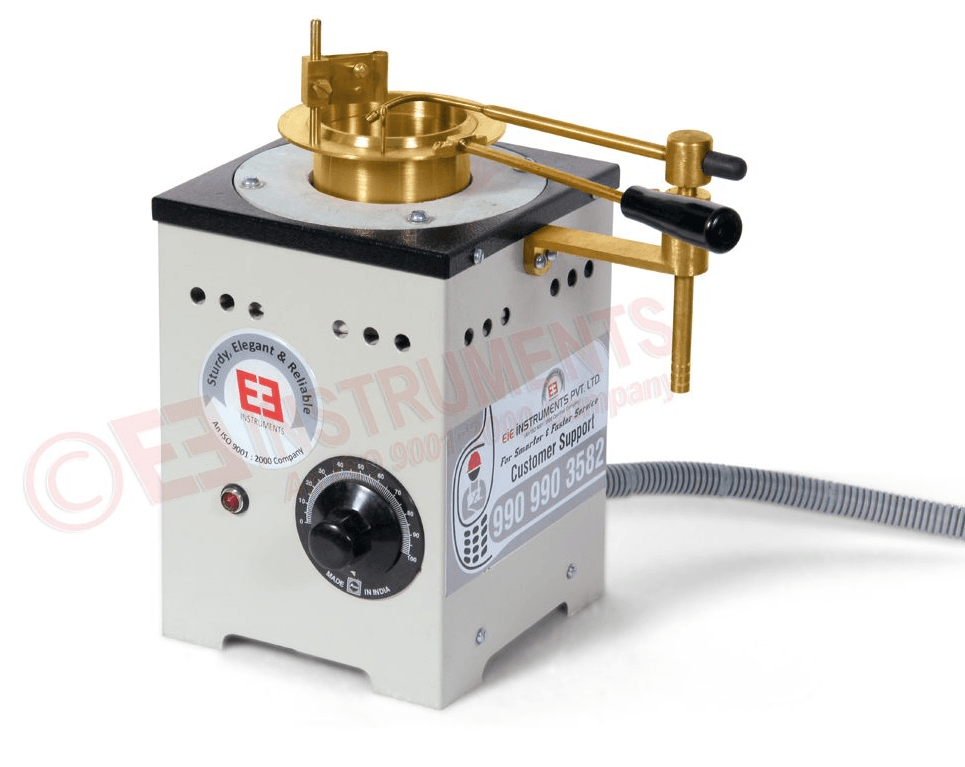

The Cleveland flash point apparatus is a top-of-the-line flash point instrument designed to deliver accurate and reliable results for determining the flash point of various substances. This advanced flash point machine is essential for laboratories, quality control departments, and research facilities, ensuring precise measurement and compliance with safety standards.

The Elastic Recovery Mould is a precision-engineered testing apparatus designed to evaluate the elastic recovery properties of bituminous materials. Manufactured from high-quality, durable materials, it ensures accurate and repeatable results in laboratory environments. The mould is supplied with a sturdy base plate for enhanced stability during testing, minimizing deformation and ensuring consistent performance. Compliant with international standards including ASTM D6084, EN 13398, and EN 13589, this mould meets stringent quality and dimensional requirements.

Designed for accurate determination of bitumen in hot mix and pavement samples, this apparatus ensures smooth, vibration-free operation with variable speed up to 3600 RPM (motorized model). Complies with ASTM D2172, AASHTO T 58, and T 164 standards. Available in multiple variants: motorized with digital RPM, hand operated, flameproof motor, and without heater (IS 1195 / IS 1322). Optional accessories available separately.

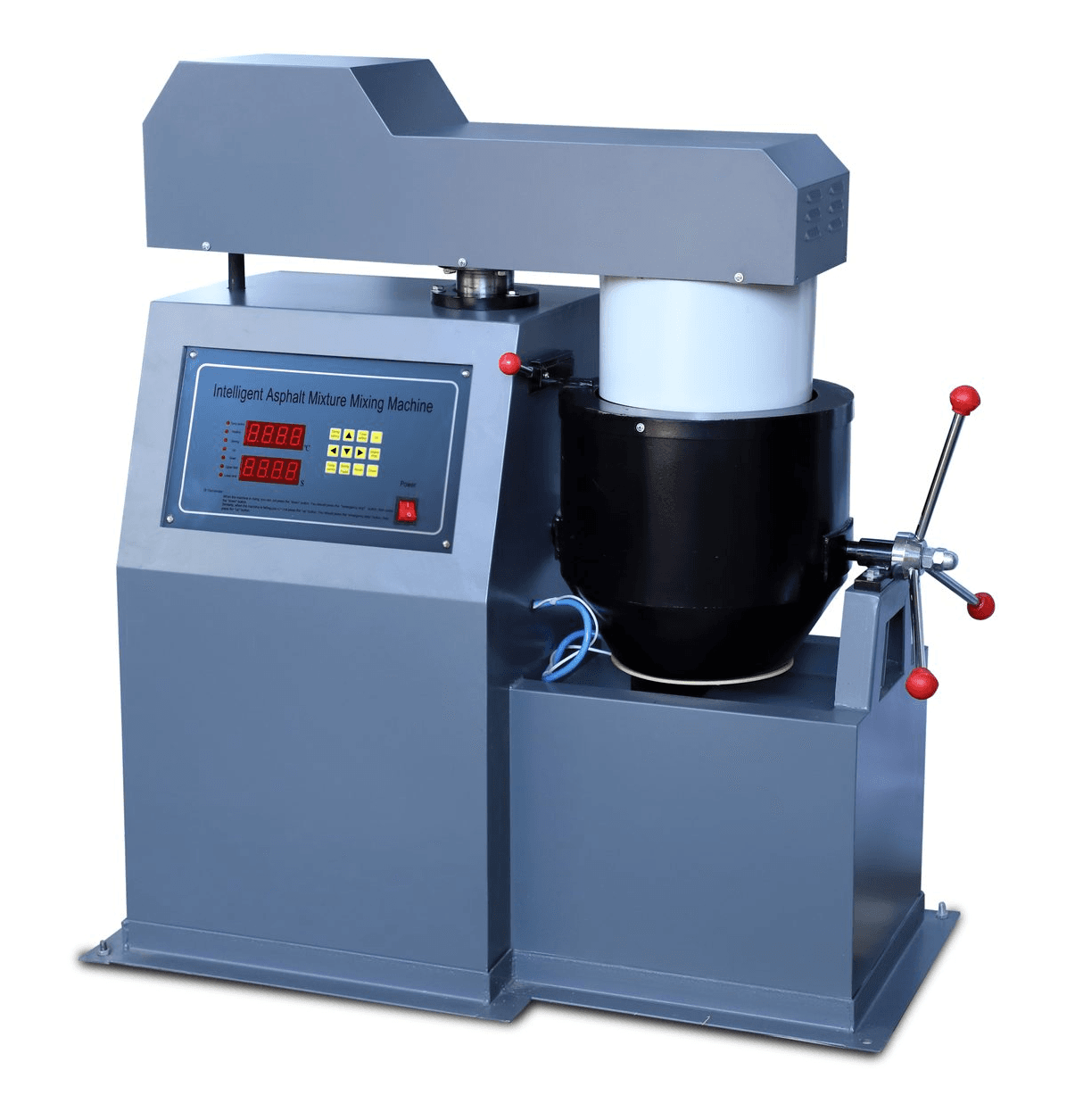

It consists of three parts: heating pot, stirrer and Lifting mechanism. The temperature of the heating pot can be set arbitrarily from room temperature to 250 ℃, and the temperature can be controlled automatically. The agitator is composed of a mixing head, a motor and a mixing paddle. During operation, the mixing paddle rotates and rotates in the pot to mix the mixture. The mixing time is controlled by timer and can be set arbitrarily in the range of 1-9999 seconds. The lifting mechanism is composed of motor, belt reducer, lead screw and other components, which is used to realize the lifting of agitator. When feeding or discharging, the agitator rises to the highest position, while when mixing, the agitator drops to the lowest position.

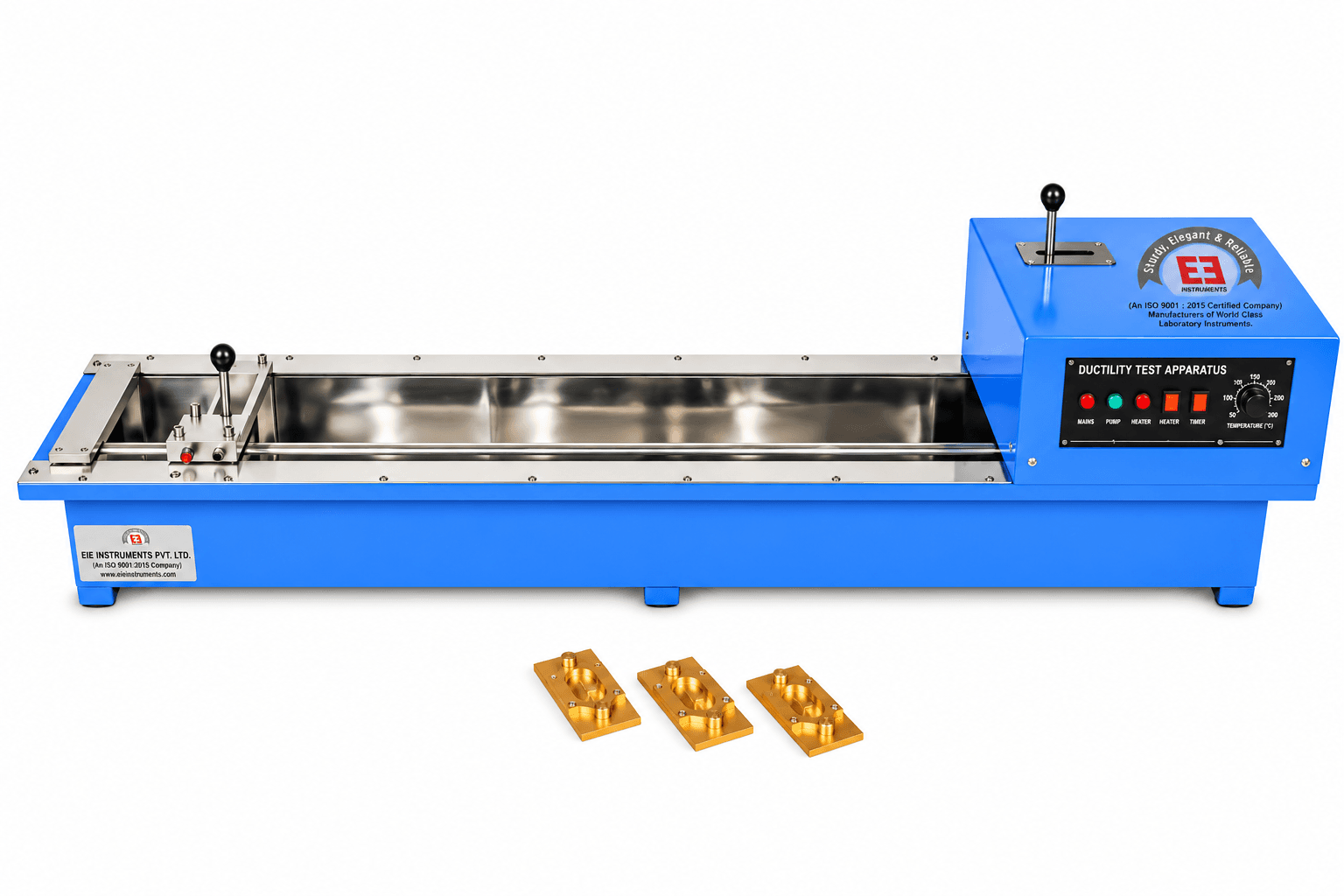

Bitumen Ductility Testing Machine as per (IS:1208) Used to determine the ductility of bitumen by measuring its elongation before breaking under controlled conditions. Helps evaluate adhesion and flexibility for pavement applications.Semi-automatic, non-digital model with thermostatic temperature control. Supplied with 3 Nos. ductility moulds. Available in refrigerated and non rerigerated models. Elastic recovery moulds available separately

Supplied with standard accessories to perform the Bitumen Penetration test. The Instrument can be used to perform penetration test on on a wide variety of materials such as grease, petroleum, Wax, Polish, foodstuff, rubber asphalts and Pharmaceutical creams with the appropriate penetration tools and Cups, which are available at extra cost on demand. Please link on the link to watch the video of this instrument. https://www.youtube.com/watch?v=WEWXyfBKpn0

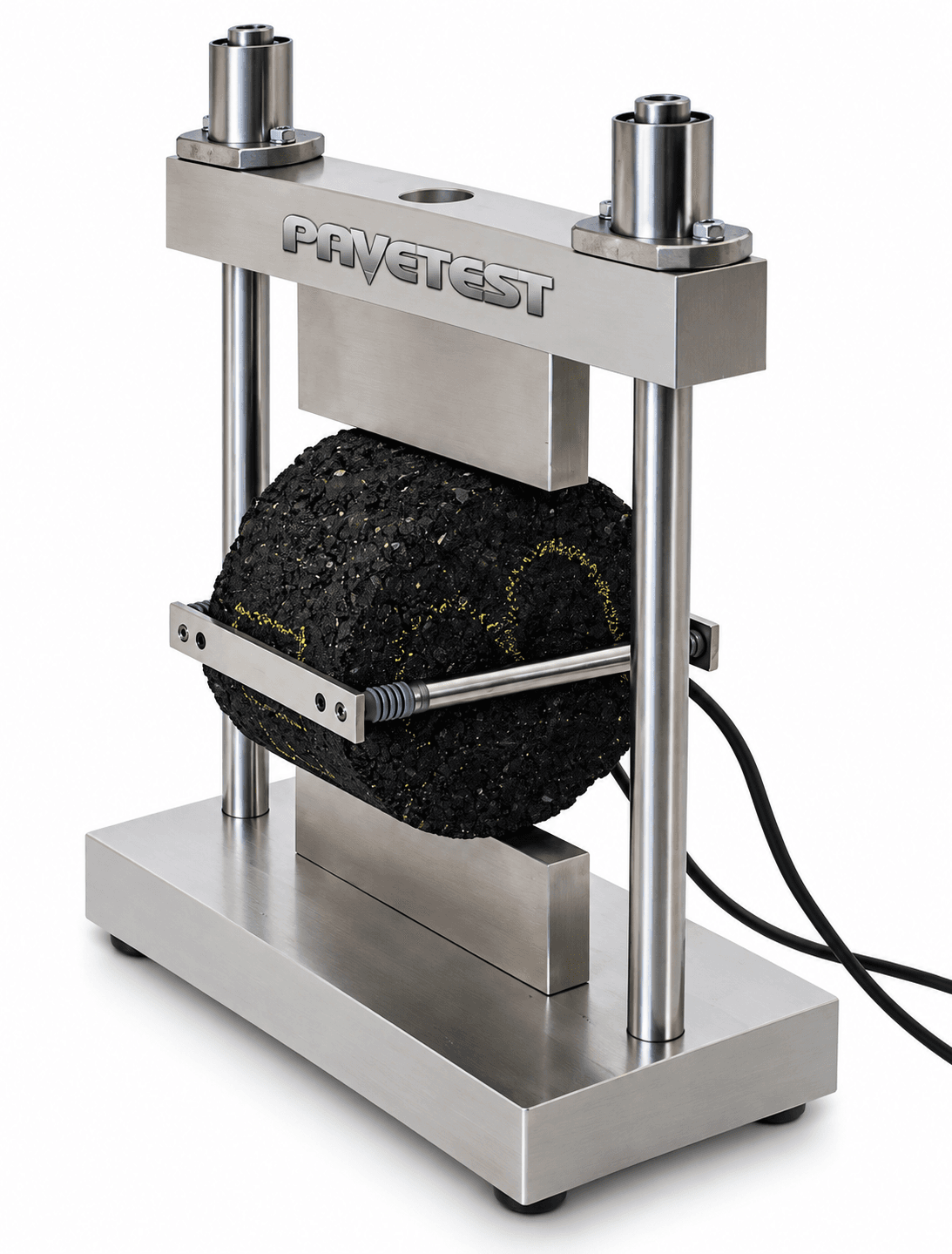

Tensile Splitting Device (Lottman Breaking Head) – ASTM D6931 Designed for 4" (100 mm) and 6" (150 mm) Marshall compacted bituminous specimens, complete with loading strips. Supplied with the breaking head assembly, guide rods, and loading strips.(Marshall machine, water bath, and oven are not included.)

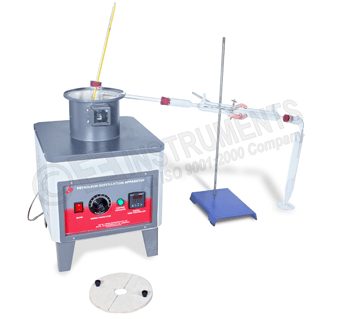

Complying with ASTM D402, IP 27, and IS 1213 standards. Supplied complete with ASTM 8C glass thermometer, 500 ml distillation flask, 100 ml crow receiver, and all required accessories. Features an electrically heated system.Equipped with both an Energy Regulator and a Digital Temperature Controller for precise operation.

No description available.

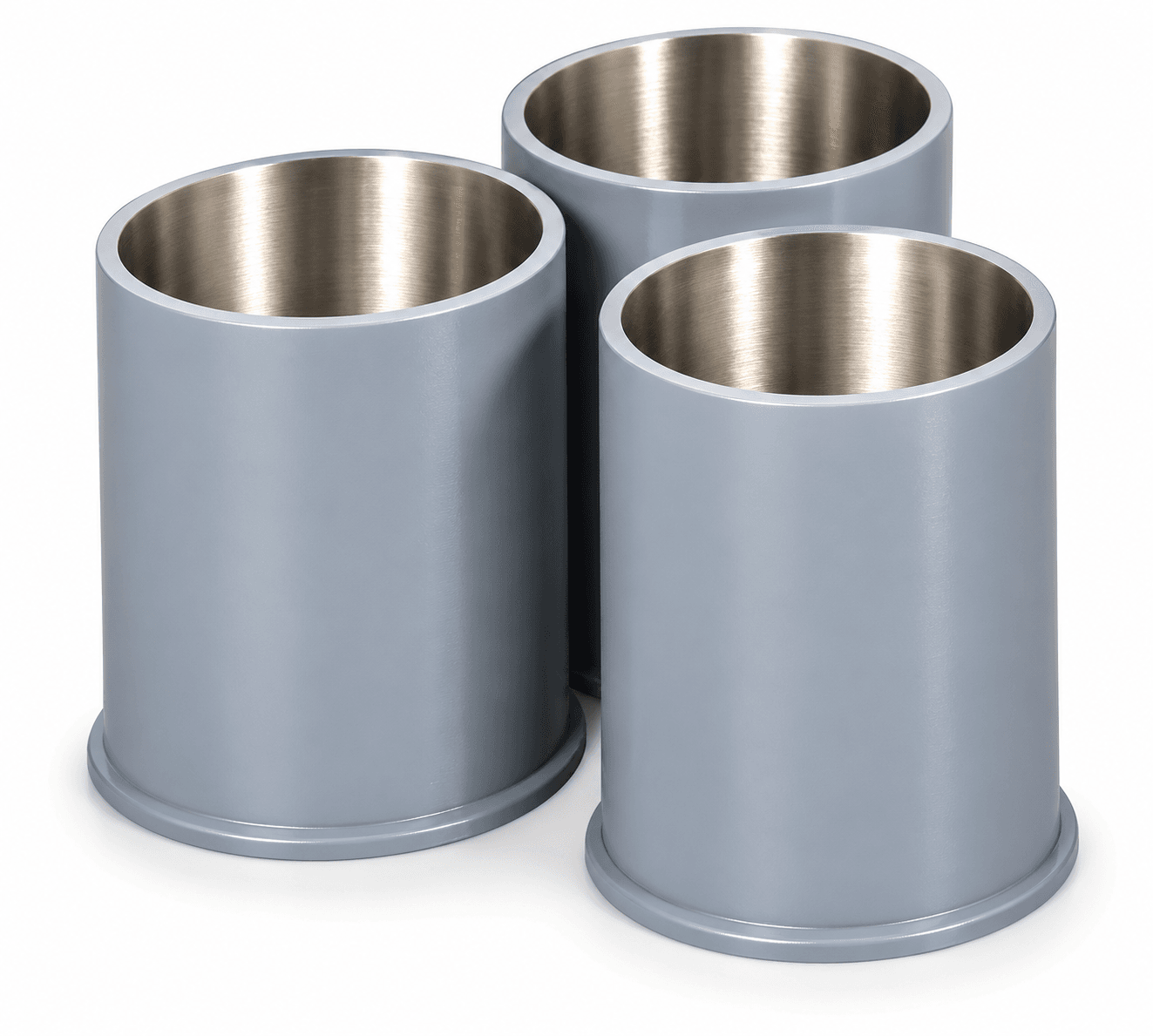

The Marshall Mould is designed for the preparation of Marshall specimens, this mould assembly conforms to ASTM D1559, AASHTO T245, EN 12697-10, and ASTM D6926 standards. It is manufactured from high-quality seamless steel and finished with a durable powder coating to ensure long-term corrosion resistance. Suitable for use with both automatic and manual compactors. The set comprises a mould body, collar, and base plate, and is available in 4-inch and 6-inch diameters for precise and consistent asphalt sample preparation.

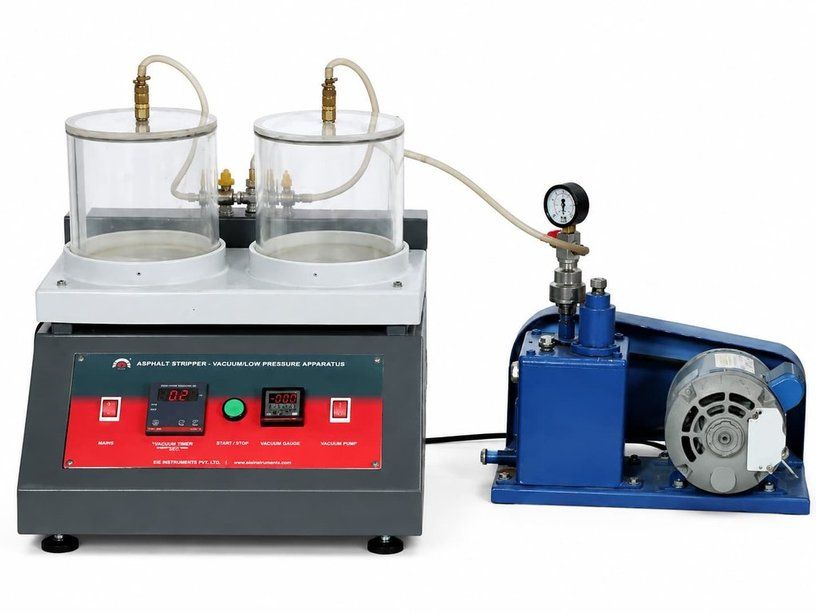

This equipment is used for determination of theoretical density of asphalt mixer by vacuum method for application such as asphalt mixer design, road condition investigation, calculation of porosity and compactness in road construction quality management.

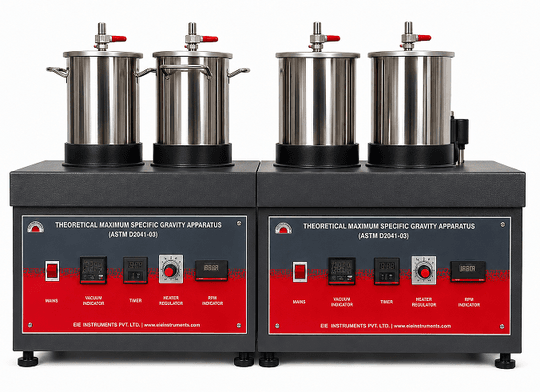

Used for determining the theoretical maximum specific gravity of uncompacted bituminous paving mixtures. The set consist of two vacuum containers, vacuum pump with digital vacuum indicator, vibratory table and control panel.

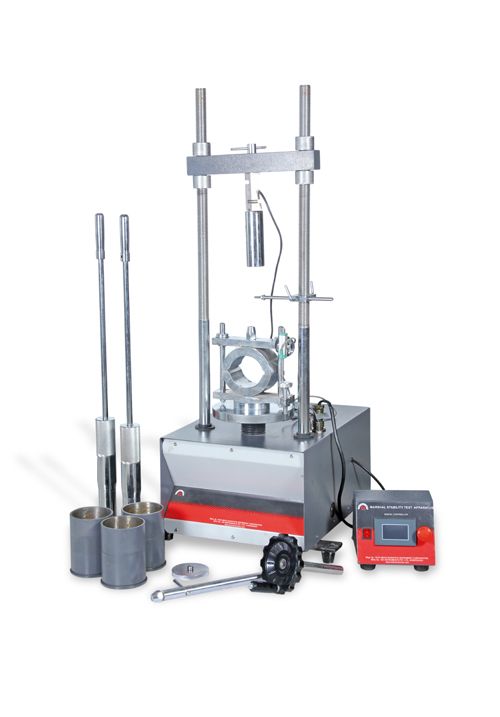

Bituminous Mix Marshall Stability Test Head with inside diameter of 100mm, lower segment mounted on base having two vertical guide rods to facilitate insertion in the holes of upper test head
