Rock Testing Instruments

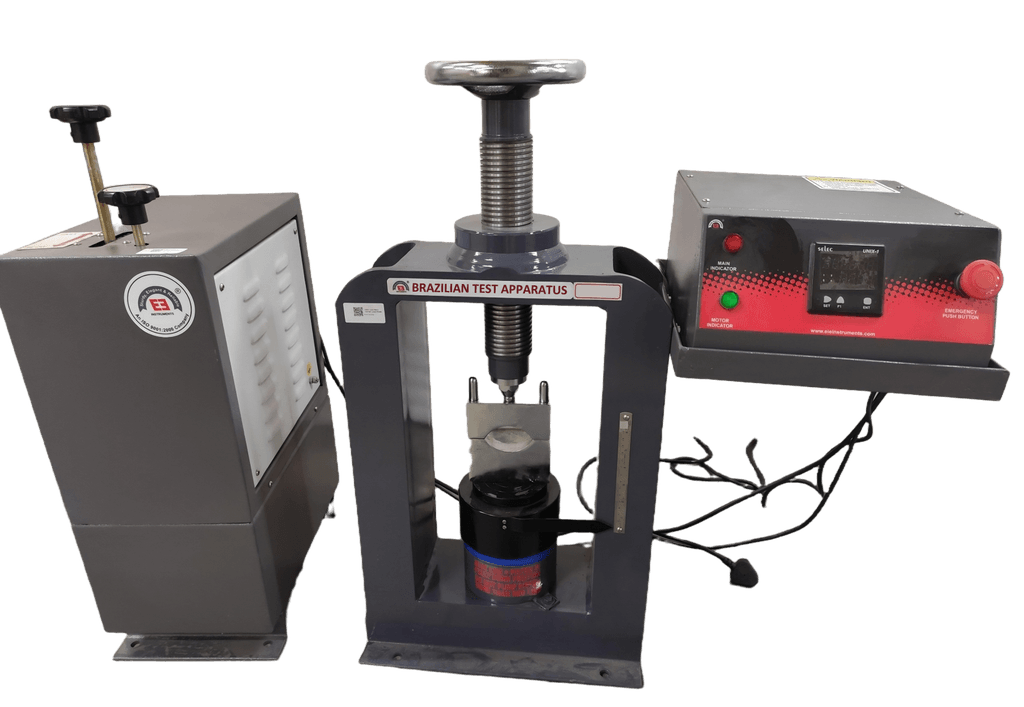

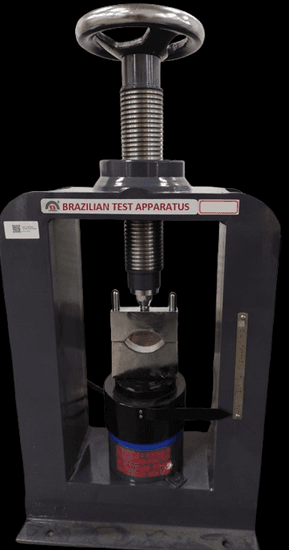

As per IS : 10082 (1981). A loading frame, 100kN Capacity, having a base and a cross head joined together with two solid pillars with nuts. On the base, a 100kN hydraulic jack is fixed between the pillars & a heavy duty pumping unit and oil reservoir on the side. A 100kN capacity pressure gauge is fixed to the jack for indicating the load on the specimen. An operating handle for the jack is also provided. One Brazilian Attachment for 'NX' size core size specimen with thickness half the diameter is supplied as a standard. Digital version also available.

As per IS : 10082 (1981). A loading frame, 100kN Capacity, having a base and a cross head joined together with two solid pillars with nuts. On the base, a 100kN hydraulic jack is fixed between the pillars & a heavy duty pumping unit and oil reservoir on the side. A 100kN capacity pressure gauge is fixed to the jack for indicating the load on the specimen. An operating handle for the jack is also provided. One Brazilian Attachment for 'NX' size core size specimen with thickness half the diameter is supplied as a standard. Digital version also available.

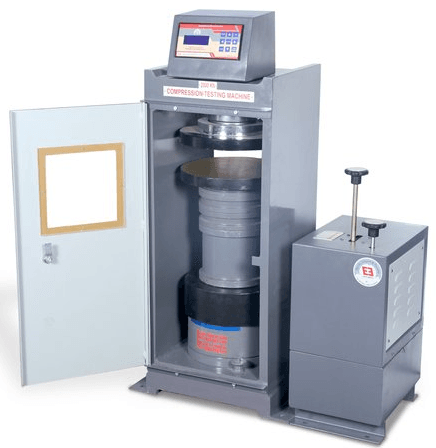

As per IS:9143. Consist of a Load frame of 500 KN Loading with digital load indication. Platens as per ASTM 2938 available at extra cost. Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Manual pace rate control, auto stop and manual release on failure of test specimen. Reading of Load in KN and N/mm2 with auto calculation. with Pace Rate indication. Manual Pace rate Control will have certain limitations. CTM with Automatic Pace rate control is recommended for accurate Pace rate Setting.

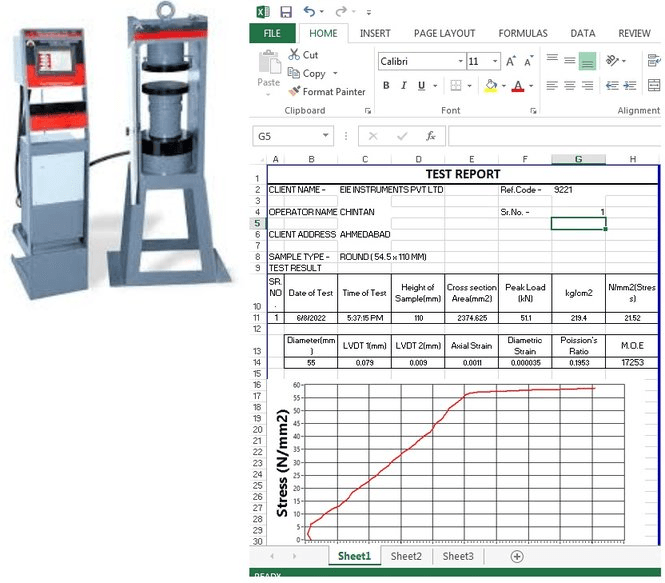

Complete with 500 KN Automatic Pace Rate Control machine with attachment for Digital Readout of Modulus of elasticity for rock along with determination of Poisson's ratio along with a displacement sensor

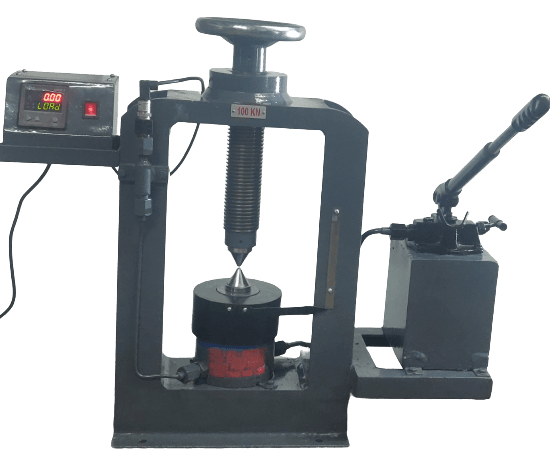

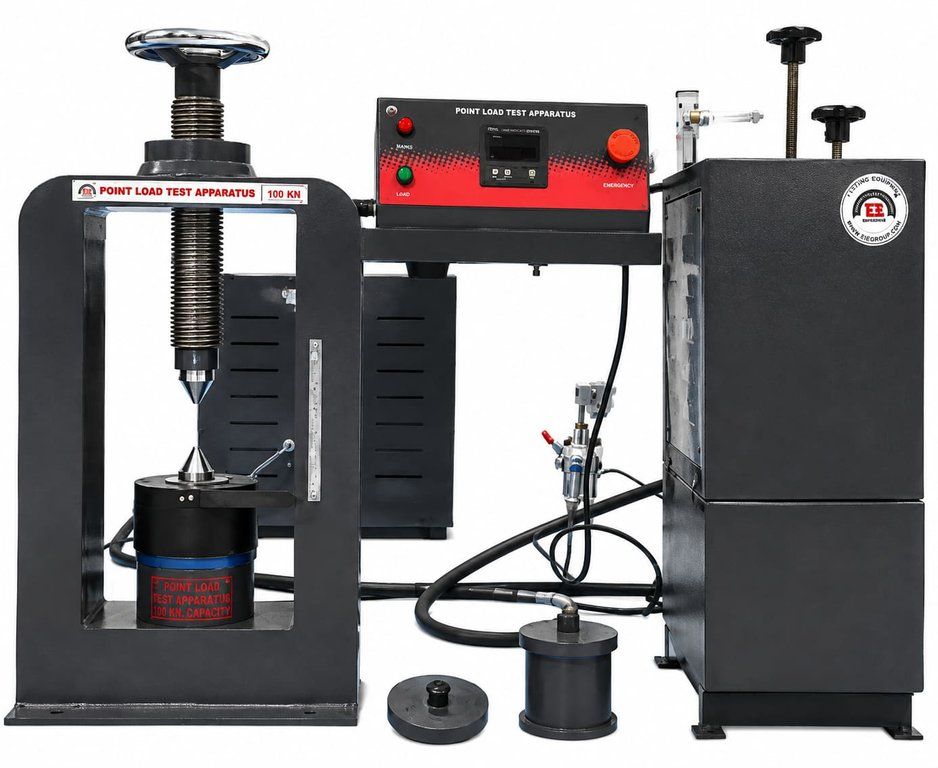

As per IS 8764. It consists of a load frame for applying loads up to 100 KN, on which a manual hydraulic jack is mounted. The instrument accepts core specimens up to 4” (101,6 mm) diameter which are loaded by two cone shaped points. The applied load is measured by with Two Pressure Gauge of 25 KN and 100 KN. with Calibration. NABL Calibration at extra cost. Motorized version also available. Price on request.

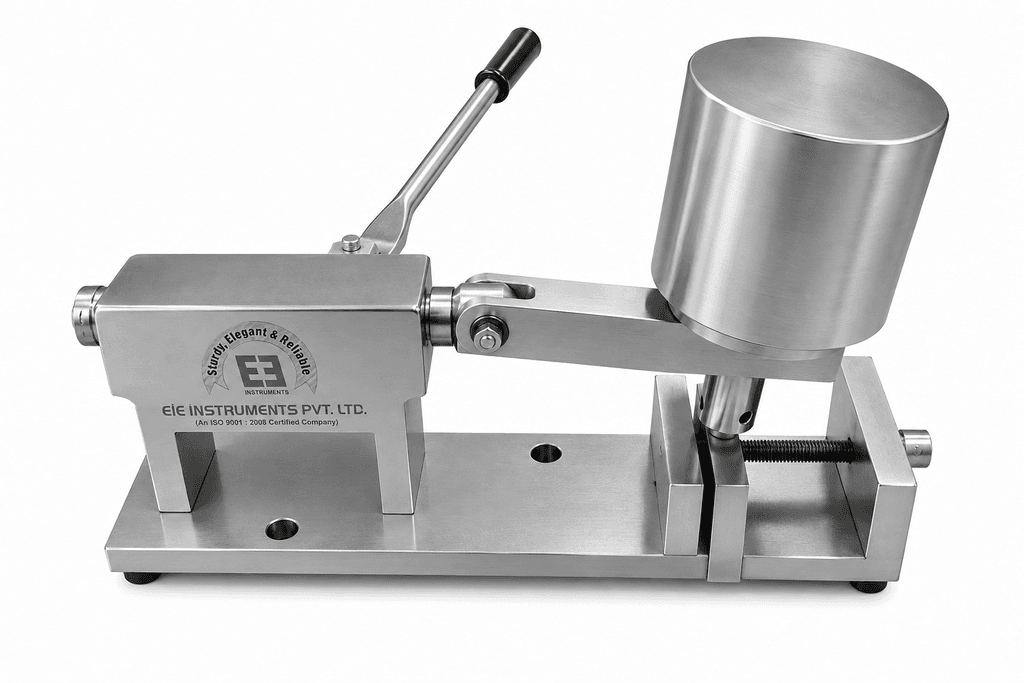

Abrasively Index Test on Rock Sample - ASTM D7625-10 (Cerchar Abrasivity Index ) Supplied without Microscope. Supplied with 10 Nos. stylus

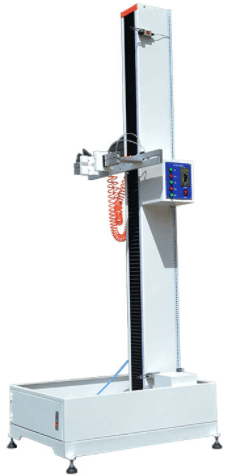

Determination of impact resistance of Agglomerated stone as per EN 14617 Part 9

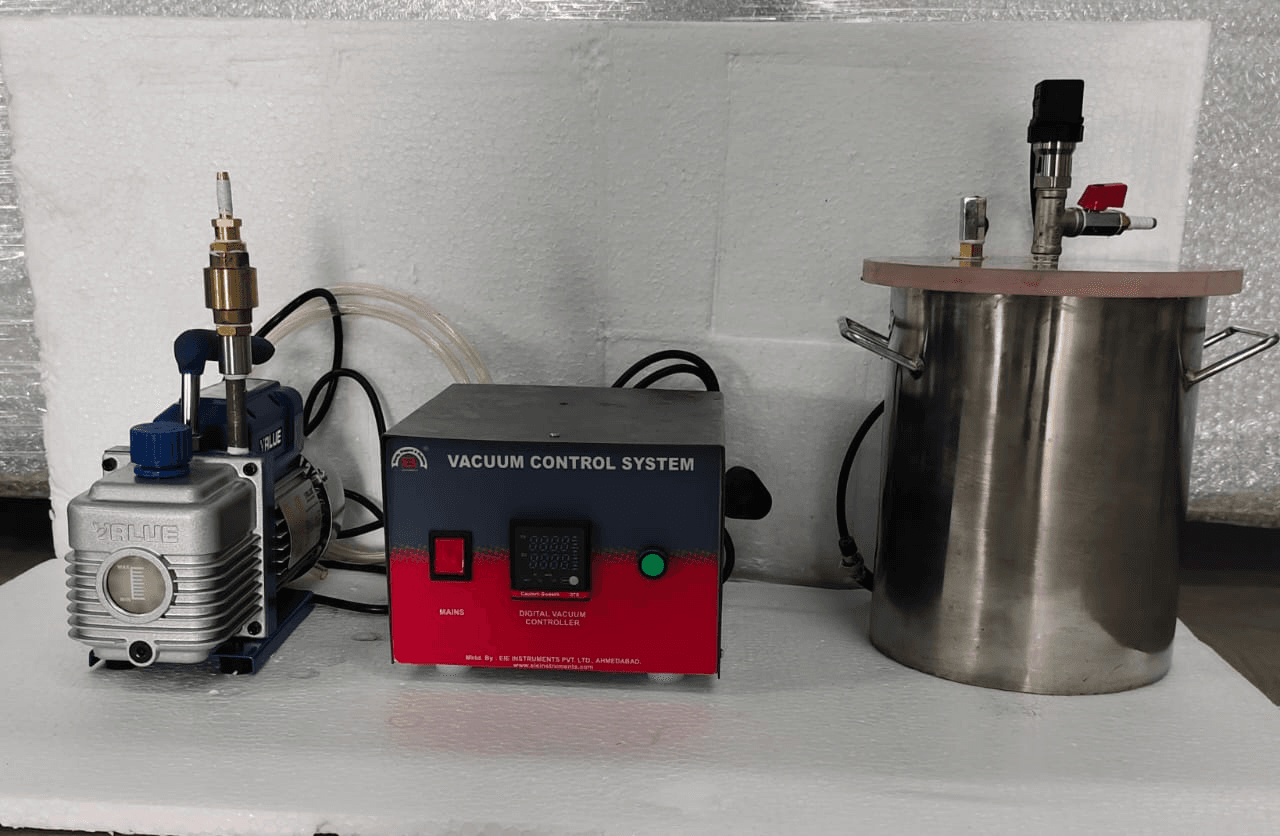

The System consists of Vacuum Vessel such that the sample can be immersed in water under vacuum of less than 0.8 kPa for a period of at least one hour. Supplied with Vacuum system and Digital Vacuum Indicator.

As per IS:8764. Capacity 100 KN X 0.01 KN, with Calibration.

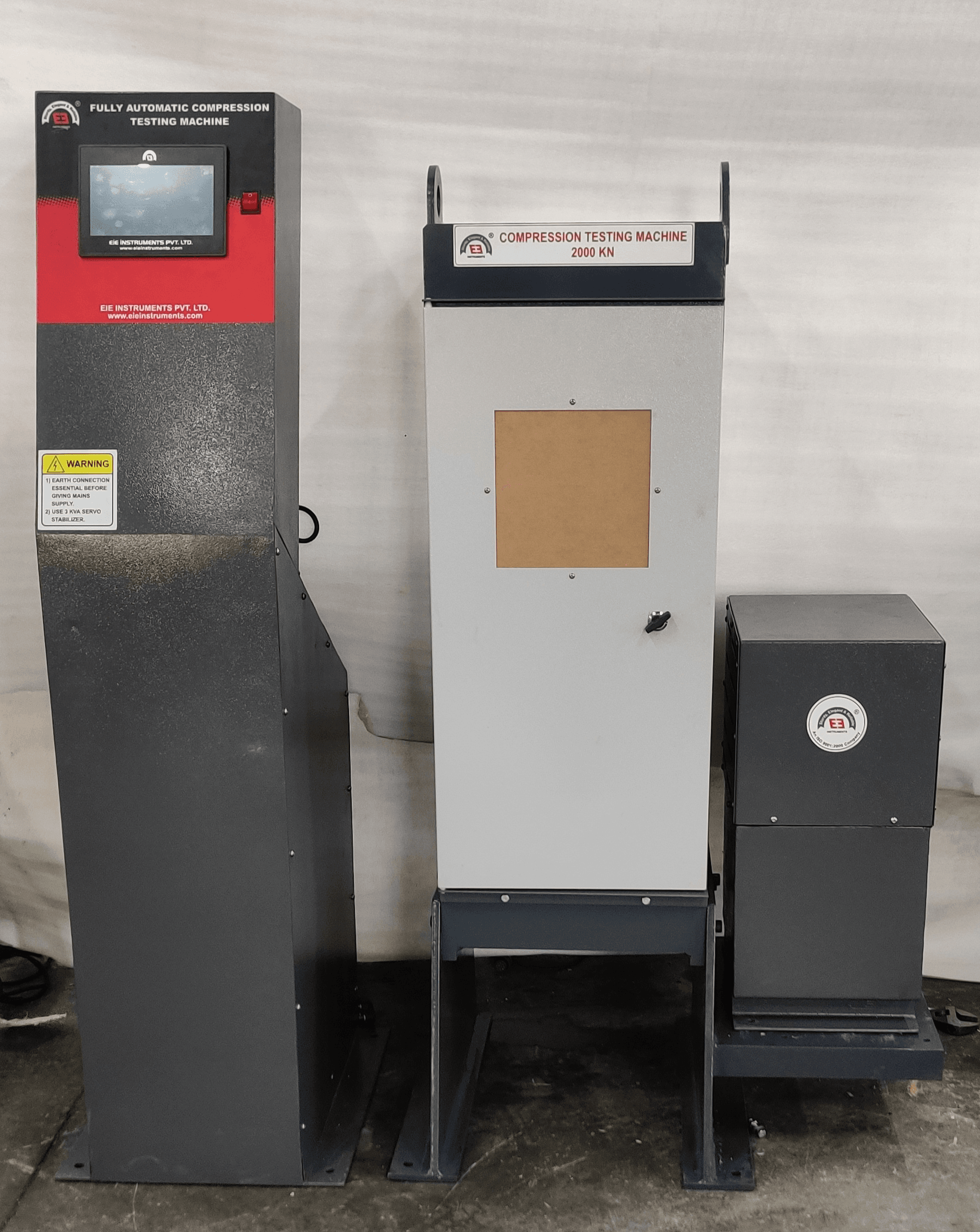

Detailed specification as follows: The machine comprise of three parts. 1) Automatic CTM 2000 kN 2) Constant confining pressure unit 3) Hoek Type Triaxial Cell

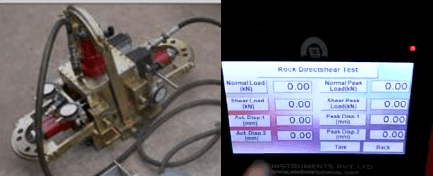

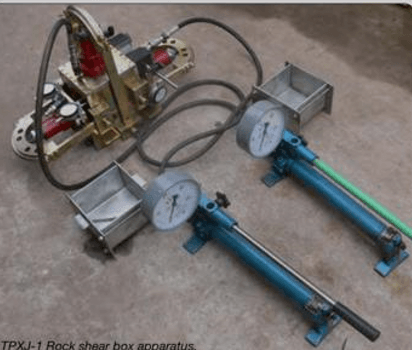

The equipment is used for Direct Shear Laboratory Test of Rock Samples. The test measures peak & residual Direct Shear Strength as a function of stress normal to the sheared plane. The equipment can be used for testing Core, Lump specimens.

The equipment is used for Direct Shear Laboratory Test of Rock Samples. The test measures peak & residual Direct Shear Strength as a function of stress normal to the sheared plane. The equipment can be used for testing Core, Lump specimens.

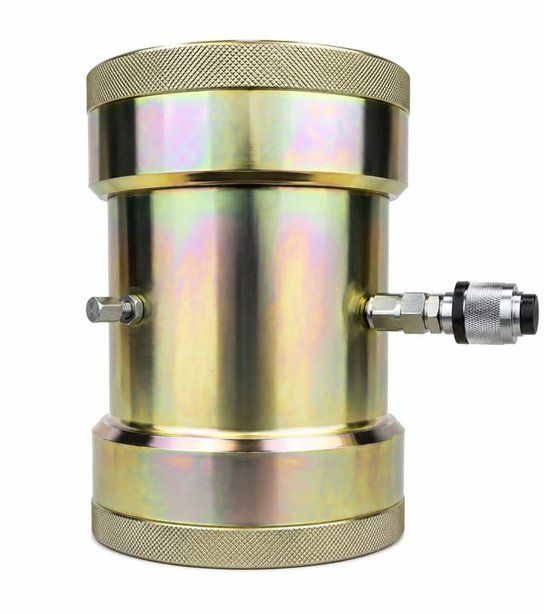

Hoek cells have been designed to be used for triaxial testing of rock specimens. Hoek cells comprise a steel body complete with two quick release self-sealing couplings, two steel end caps which are screwed to the cell body, 2 pieces of upper and 2 pieces of lower loading caps with spherical coupling and a rubber sealing sleeve to separate the specimen from the cell fluid.

As per IS:8764. Capacity 100 KN X 0.01 KN, with Calibration. NABL Calibration at extra cost
